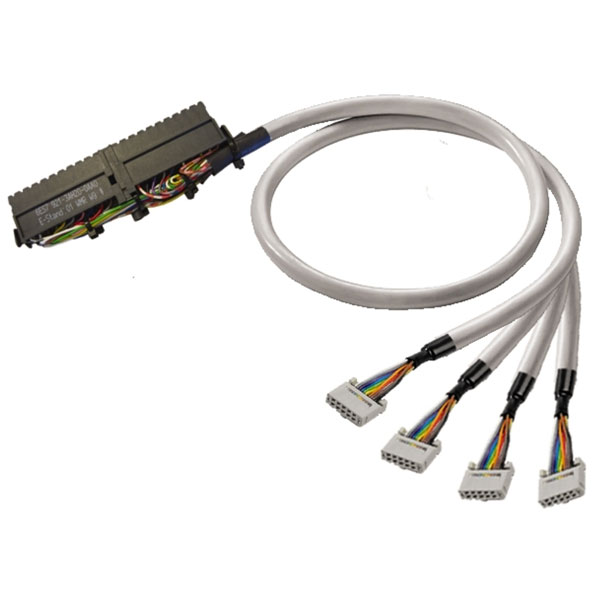

Weidmüller manufactures the 1512640035 cable for digital signals, known for high-performance quality and reliable data transmission. This cable is suited for applications requiring robust signal integrity and is commonly used in industrial automation and control systems. It is designed to ensure efficiency and stability in digital communication environments.
| Colour |
Grey |
| Length |
3.5 |
| Type |
Cable |
| Basic material |
PVC |
| Cable |
Cable LiYY |
| Cable Length |
3.5 m |
| Capacity wire / wires |
300 pF/m |
| Connector PLC side |
SIEMENS S7300 |
| ECLASS 14 |
27-24-22-20 |
| ECLASS 15.0 |
27-24-22-20 |
| ETIM 10 |
EC000237 |
| ETIM 8.0 |
EC000237 |
| ETIM 9.0 |
EC000237 |
| Function |
PLC - other devices |
| GTIN (EAN) |
4099986589926 |
| High voltage test |
1 KV/1s |
| Interface connector |
4xHE10 10P |
| Net weight |
615g |
| Number of Poles |
10 |
| Number of poles, min. |
10-pole |
| Operating Temperature |
-10...50°C |
| Outer Diameter |
5.4 ± 1mm |
| Permissible current strength per path, |
1 A |
| Qty. |
1 items |
| Rated voltage |
= 60 V DC = 25 V AC |
| REACH SVHC |
Lead 7439-92-1 |
| Resistance |
= 150 mO/m |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
4bbf2c0d-0764-4fc8-bb24-9351c28c190d |
| Storage temperature |
-10...60°C |
| Suitable For |
Digital signals |
| Suitable for analogue signals |
false |
| Suitable for digital signals |
true |
| Suitable for input board PLC |
false |
| Suitable for output card PLC |
false |
| Total current, max. |
3 A |
| Type of electrical connection, box-sided |
Connection plug board |
| Type of electrical connection, field-sided |
Cable end sleeve |
| Version |
Pre-assembled cable, PAC, Cable LiYY, 5.4 ± 1mm |
| Wire cross-section |
0.14mm² |
