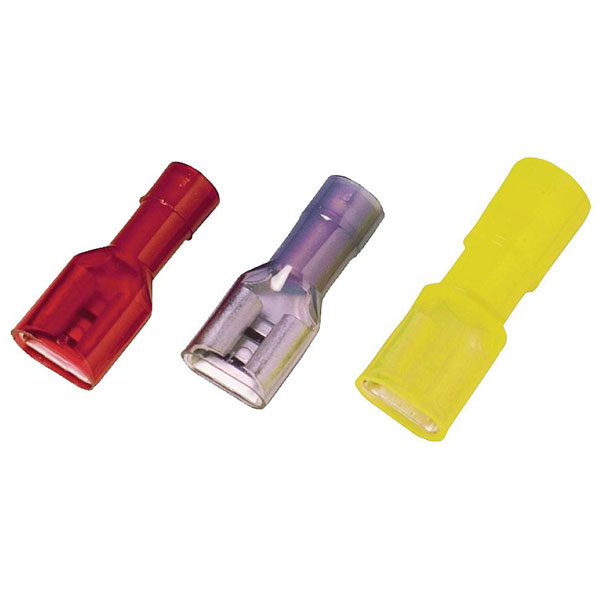

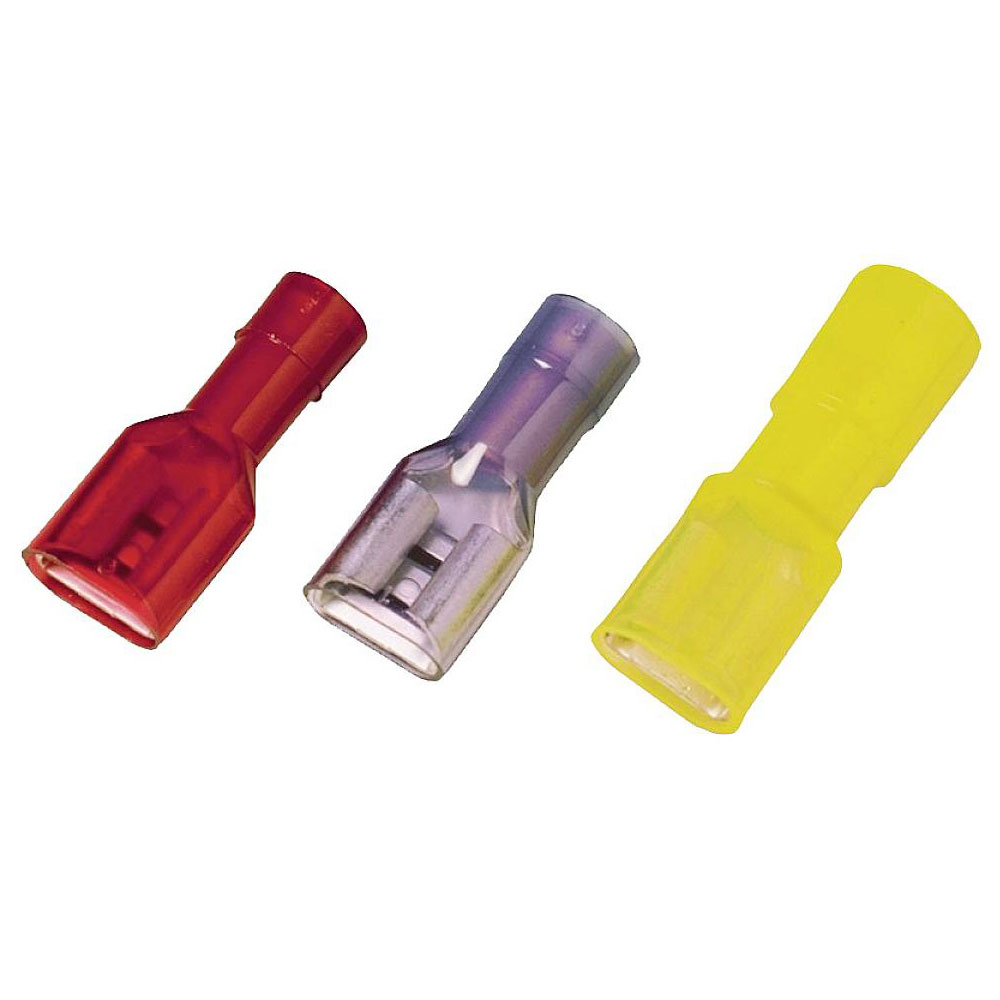

Weidmüller 1491910000 Blade receptacle 6.3mm 0.8mm Red 100pcs

The Weidmüller 1491910000 blade receptacle is an insulated, red crimp connector designed with a connector width of 6.3 mm and thickness of 0.8 mm. These connectors are typically used in electrical and industrial applications for secure wire termination. Sold in packs of 100, they provide reliable connectivity for various wiring needs.

Insulation	PVC
Colour	Red
Tab Width	6.3mm
Tab Thickness	0.8mm
Gender	Receptacle
Colour insulation	Red
Conductor Cross-section	1mm²
Conductor cross-section, max.	1mm²
Conductor cross-section, min.	0.5mm²
Connector thickness	0.8mm
Connector Width	6.3mm
Cross-section range	0.5 - 1mm²
Dimension	6.3 x 0.8 mm
ECLASS 14	27-44-03-92
ECLASS 15.0	27-44-03-92
ETIM 10	EC000516
ETIM 8.0	EC000516
ETIM 9.0	EC000516
GTIN (EAN)	4050118301847
Halogen free	true
Identification colour	red
Insulation Type	Insulated
Length 1 (I1)	21.5mm
Material	Copper
Material insulation	Polyamide (PA)
Material/plastic	PVC
max. cross section	1mm²
Max. current (Imax)	15
Min. cross section	0.5mm²
Misc Attribute	VFSKHV/0,5-1,0/638
Net weight	1.15g
Nominal cross section	0.5 - 1
Plug dimensions	Flat 6.3x0.8mm
Plug-in density (d3)	0.8mm
Plug-in width (d2)	6.3mm
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	7b42d2b9-0a0f-4f66-a989-e9bfbbfeb1b3
Size	6.3 x 0.8 mm
Type	Blade receptacle
Version	cable lug, terminal end,Insulated cable connec-
Weight	1.148g
With cam clamp	false
With tap spreader	false
