Weidműller 1481720050 Cable Digital Signals 1481720050

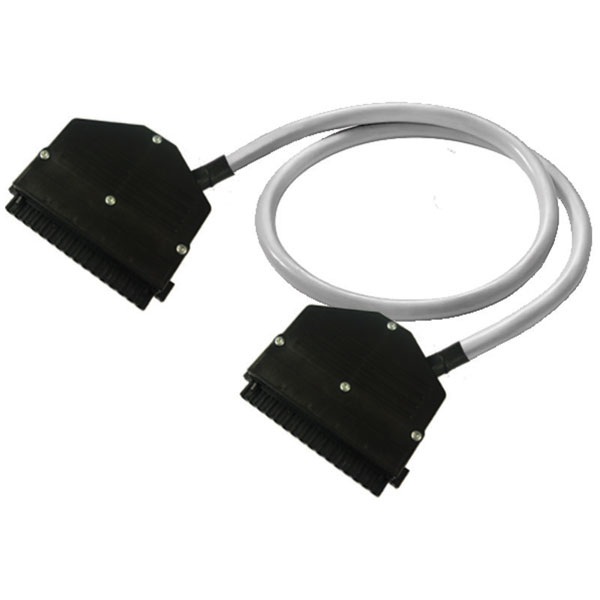

Weidmüller C300-16B-160B-2S-M50-5M is a PLC-wire, Digital signals, 16-pole, Cable LiYCY, 5 m, 0.50 mm². Assembled cable for electrical connection and information transmission between the PLC and a PLC interface.

Colour	Grey
Length	5m
Type	Pre-assembled cable
Basic material	PVC
Cable	Cable LiYCY
Cable Length	5 m
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Connector PLC side	SP-BLZP 5.08 16P with
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
Function	PLC - other devices
GTIN (EAN)	4032248373550
High voltage test	1 KV/1s
Interface connector	SP-BLZP 5.08 16P with
Net weight	375.15g
Number of Poles	16
Number of poles, min.	16-pole
Operating Temperature	-10...50°C
Operating Voltage	= 250 V DC = 250 V AC
Outer Diameter	15,75 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	= 250 Vdc = 250 Vac
REACH SVHC	No SVHC above 0.1 wt%
Resistance	= 39 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant
Storage temperature	-10...60°C
Suitable For	Digital signals
Suitable for analogue signals	false
Suitable for digital signals	true
Suitable for input board PLC	false
Suitable for output card PLC	false
Total current, max.	7 A
Version	Pre-assembled cable, PAC, Cable LiYCY, 0.50mm²
Wire cross-section	0.50mm²
