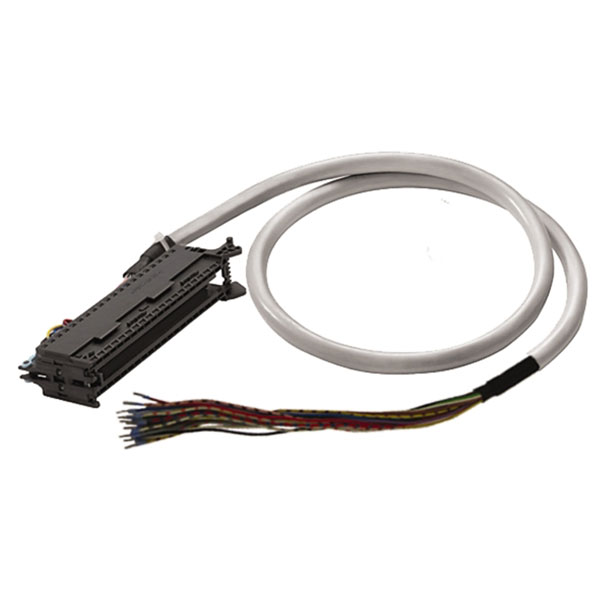

Weidműller 1466240020 Analogue Signals Cable High-Quality Performance

Weidmüllers 1466240020 analogue signals cable ensures high-quality performance with its robust design and reliable connectivity. The cable is ideal for precise data transmission in industrial automation applications. Engineers can take advantage of its durability and efficiency.

Colour	Grey
Type	Cable
Basic material	PVC
Cable	Cable LiYCY
Cable Length	2 m
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Connector PLC side	SIEMENS S71500
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
GTIN (EAN)	4032248188505
High voltage test	1 KV/1s
Interface connector	H0.25/10 (FERRULES
Net weight	711g
Number of poles, min.	40-pole
Operating Temperature	-10...50
Outer Diameter	12.4 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	= 250 Vdc = 250 Vac
REACH SVHC	Lead 7439-92-1
Resistance	= 80 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	4bbf2c0d-0764-4fc8-bb24-9351c28c190d
Storage temperature	-10...60°C
Suitable For	Analogue signals
Total current, max.	3 A
Version	Pre-assembled cable, PAC, Cable LiYCY, 0.25mm²
Wire cross-section	0.25mm²
