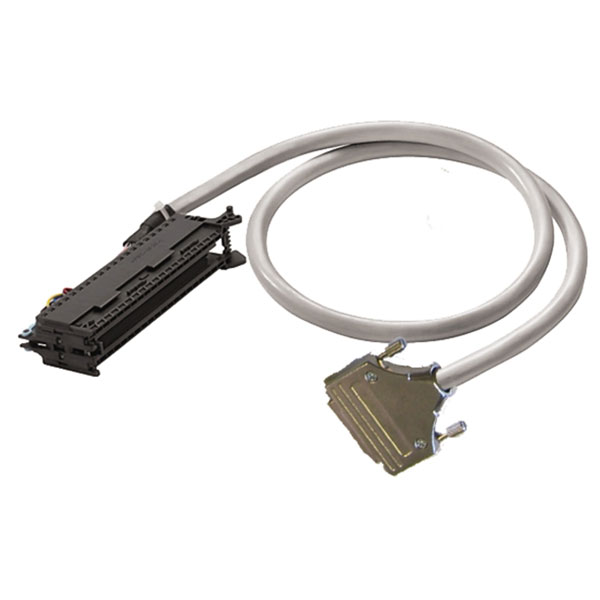

Weidmüller produces the 1462150020 cable designed for analogue signal connections, ensuring high reliability and consistent performance. This cable features robust construction and reliable connectivity for efficient signal transmission in industrial environments. It is typically used in settings requiring dependable analogue signal interfacing, such as process control and automation applications.
| Colour |
Grey |
| Length |
2 |
| Type |
Cable |
| Basic material |
PVC |
| Cable |
Cable LiYCY |
| Cable Length |
2 m |
| Capacity wire / shield |
300 pF/m |
| Capacity wire / wires |
300 pF/m |
| Connector PLC side |
SIEMENS S71500 |
| ECLASS 14 |
27-24-22-20 |
| ECLASS 15.0 |
27-24-22-20 |
| ETIM 10 |
EC000237 |
| ETIM 8.0 |
EC000237 |
| ETIM 9.0 |
EC000237 |
| Function |
PLC - other devices |
| GTIN (EAN) |
4032248271290 |
| High voltage test |
1 KV/1s |
| Interface connector |
SUB-D FEMALE 15P |
| Net weight |
315g |
| Number of Poles |
15 |
| Number of poles, min. |
15-pole |
| Operating Temperature |
-10...50 |
| Outer Diameter |
8.7 ± 1mm |
| Permissible current strength per path, |
1 A |
| Qty. |
1 items |
| Rated voltage |
= 60 Vdc = 25 Vac |
| REACH SVHC |
Lead 7439-92-1 |
| Resistance |
= 80 mO/m |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
4bbf2c0d-0764-4fc8-bb24-9351c28c190d |
| Storage temperature |
-10...60°C |
| Suitable For |
Analogue signals |
| Suitable for analogue signals |
true |
| Suitable for digital signals |
false |
| Suitable for input board PLC |
false |
| Suitable for output card PLC |
false |
| Total current, max. |
3 A |
| Type of electrical connection, box-sided |
Connection plug board |
| Type of electrical connection, field-sided |
Other |
| Version |
Pre-assembled cable, PAC, Cable LiYCY, 0.25mm² |
| Wire cross-section |
0.25mm² |
