Weidműller 1462040100 Cable Digital Signals High-Performance Signal Cable

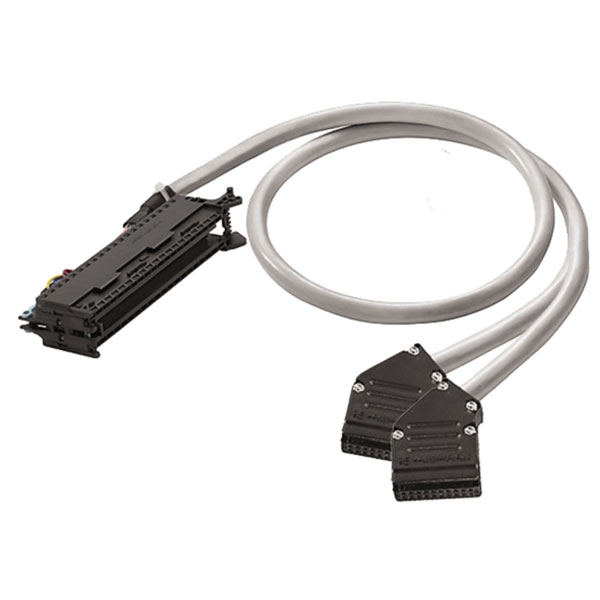

Weidmüller PAC-S1500-HE20-V0-10M is a PLC-wire, Digital signals, 20-pole, Cable LiYY, 10 m, 0.25 mm². Assembled cable for electrical connection and information transmission between the PLC and a PLC interface.

Colour	Grey
Length	10
Type	Pre-assembled cable
Basic material	PVC
Cable	Cable LiYY
Cable Length	10 m
Capacity wire / wires	300 pF/m
Connector PLC side	SIEMENS S71500
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
Function	PLC - other devices
GTIN (EAN)	4032248277179
High voltage test	1 KV/1s
Interface connector	2X FLAT CABLE
Net weight	2114g
Number of Poles	20
Number of poles, min.	20-pole
Operating Temperature	-10...50
Outer Diameter	8.6 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	= 60 Vdc = 25 Vac
REACH SVHC	Lead 7439-92-1
Resistance	= 80 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	4bbf2c0d-0764-4fc8-bb24-9351c28c190d
Storage temperature	-10...60°C
Suitable For	Digital signals
Suitable for analogue signals	false
Suitable for digital signals	true
Suitable for input board PLC	false
Suitable for output card PLC	false
Total current, max.	3 A
Type of electrical connection, box-sided	Connection plug board
Type of electrical connection, field-sided	Connection plug board
Version	Pre-assembled cable, PAC, Cable LiYY, 0.25mm²
Wire cross-section	0.25mm²
