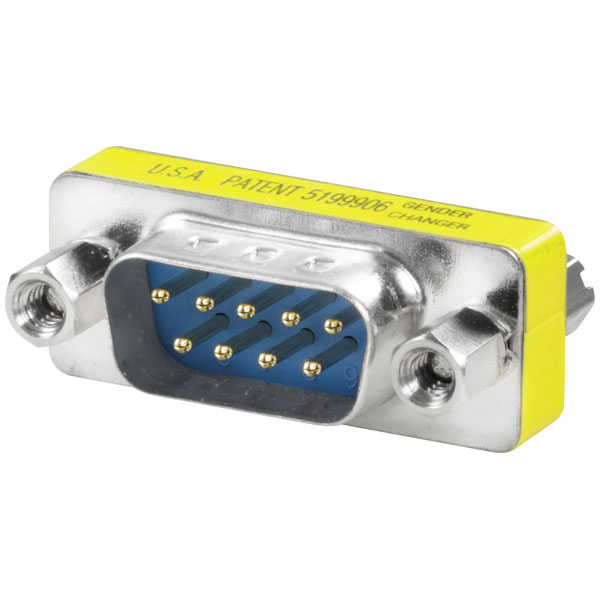

Weidmüller 1450850000 FrontCom gender changer D-Sub 9 pin socket/plug

The Weidmüller gender changer D-Sub 9 pin, socket/plug is a compact and reliable connector. It is typically used for converting between male and female D-Sub interfaces in electronic equipment. This product is often applied in telecommunications and industrial automation systems.

Type	IE-FCI-D9-FM
Casing	D-Sub
Certificate No. (DNV)	TAA000022B
Certificate No. (UR)	E497345
Colour	Other
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
Connection Angle	180°
Contact Resistance	= 20 mO
Contact surface	Gold-plated
Current-carrying capacity	3 A
Dielectric strength, contact / contact	1 kV eff /1 min.
Dim	(L x W x H) 30.8 x 12.5 x 17.6 mm
Dimensioned drawing	Dimensioned drawing
ECLASS 14.0	27-18-28-92
ECLASS 15.0	27-18-28-92
ETIM 10.0	EC001121
ETIM 8.0	EC001121
ETIM 9.0	EC001121
Factory colour	Multi-coloured
GTIN (EAN)	4050118255713
Height	17.6mm
Height (inches)	0.7047 inch
Hole spacing	25mm
Housing main material	SPCC
Housing surface	tin-plated
Insert type	Signal insert D-Sub, 9-pole
Insulation Resistance	1000 MO at 500 V DC
Length	30.8mm
Length (inches)	1.2126 inch
Material insulator	PBT glass fibre reinforced
Misc Attribute	IE-FCI-D9-FM
Model	Plug
Net weight	9.68g
Number of Poles	9
Pins	9
Protection degree	IP20
Qty.	1 items
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	14f36bdb-8bcd-4f24-8fb3-9538ad1abec6
Special tool necessary	false
Storage temperature	Operating temperature
Suitable for flat cable	false
Suitable for litz wire conductor	false
Suitable for round cable	true
Suitable for solid conductors	true
Temperature Range	-55 - +105°C
Transparent	false
Type of connector	Other
UL File Number Search	UL Website
Version	FrontCom, Signal insert D-Sub, 9-pole, Plug,
Weight	11.04g
Width	12.5mm
Width (inches)	0.4921 inch
