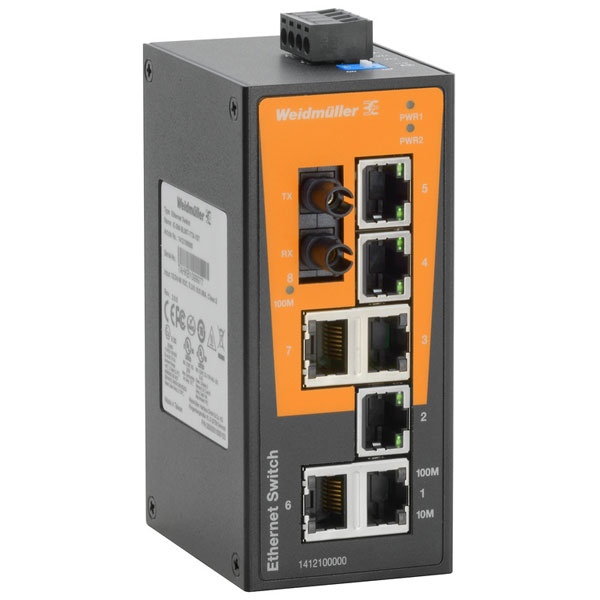

Weidmüller provides a fast ethernet switch with an unmanaged and durable design, ideal for industrial environments. The device supports reliable network connectivity with straightforward plug-and-play functionality. Typical applications include automation systems and industrial networking solutions.
| Type |
Unmanaged Switch |
| RJ45 Ports |
7 |
| PoE |
No |
| 2, Groups A, B, C and D, |
60068-2-32 |
| Alternative product |
IE-SW-EL08-6TX-2SC |
| Available until |
2022-06-01T00:00:00+02:00 |
| Bandwidth backplane |
1.6 Gbit/s |
| Certificate no. (cULus) |
E141197 |
| Certificate no. (cULusEX) |
E223527 |
| Connection Type |
1 removable 4-pin terminal block |
| Connector Type |
ST-Duplex |
| connector), Multimode |
negotiation, Full-/half- |
| Current Consumption |
0.17 A at 24 V |
| Data switching |
Store and Forward |
| Delivery status |
Discontinued |
| Depth |
70 |
| Depth (inches) |
2.7559 inch |
| ECLASS 14 |
19-17-04-02 |
| ECLASS 15.0 |
19-17-04-02 |
| EMC standards |
EN 55032, EN 55035, |
| ETIM 10 |
EC000734 |
| ETIM 8.0 |
EC000734 |
| ETIM 9.0 |
EC000734 |
| Explosive risk zone |
UL/cUL, Class I, Division |
| FCC Part 15 Subpart B |
60068-2-6 |
| Fibre-optic ports |
100BaseFX ports (ST |
| Flow control |
IEEE 802.3x flow control, |
| Free fall |
According to IEC |
| Function DIP switch |
1x for enabling/disabling |
| GTIN (EAN) |
4050118212785 |
| Height |
115mm |
| Height (inches) |
4.5275 inch |
| Housing main material |
Aluminium |
| Humidity |
5 to 95 % (non- |
| LED indicator |
PWR1, PWR2, 10/100M |
| Link-budget |
12 dB |
| MAC table size |
2 K |
| Maximum Operating Temperature |
75 |
| Minimum Operating Temperature |
-40°C |
| MTBF |
According to Standard |
| Net weight |
275g |
| Number of Ports |
7x RJ45, 1 * ST Multi- |
| Operating Temperature |
-40 °C...75 |
| Operating time (hours), min. |
2428212 h |
| Overload current protection |
1.1 A |
| Packet buffer size |
768 kBit |
| Protection degree |
IP30 |
| REACH SVHC |
Lead 7439-92-1 |
| Receive power |
min. |
| Reverse polarity protection |
Available |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant |
| Safety standard |
UL508 |
| SCIP |
9229992a-00b9-4096-8962-200a7f33e289 |
| Shock |
according to IEC |
| Speed |
Fast Ethernet |
| Standard |
IEEE 802.3 for 10BaseT, |
| Storage temperature |
-40 °C...85°C |
| Storage temperature, max. |
85°C |
| Storage temperature, min. |
-40°C |
| Supply Voltage |
12/24/48 V DC, 2 redundant inputs |
| Switch |
unmanaged |
| the broadcast storm |
mode |
| Time interval |
5 years |
| Transceiver type |
Multimode |
| Transmission distance, typ. |
5 km |
| Transmission power |
min. |
| Transmission rate |
100 Mbps |
| Type of mounting |
DIN rail, Panel (with |
| UL File Number Search |
UL Website |
| Version |
Network switch, unmanaged, Fast Ethernet, Num- |
| Vibration |
according to IEC |
| Voltage supply range |
Voltage type |
| Voltage, max. |
60 V |
| Voltage, min. |
9.6 V |
| Width |
50mm |
| Width (inches) |
1.9685 inch |
