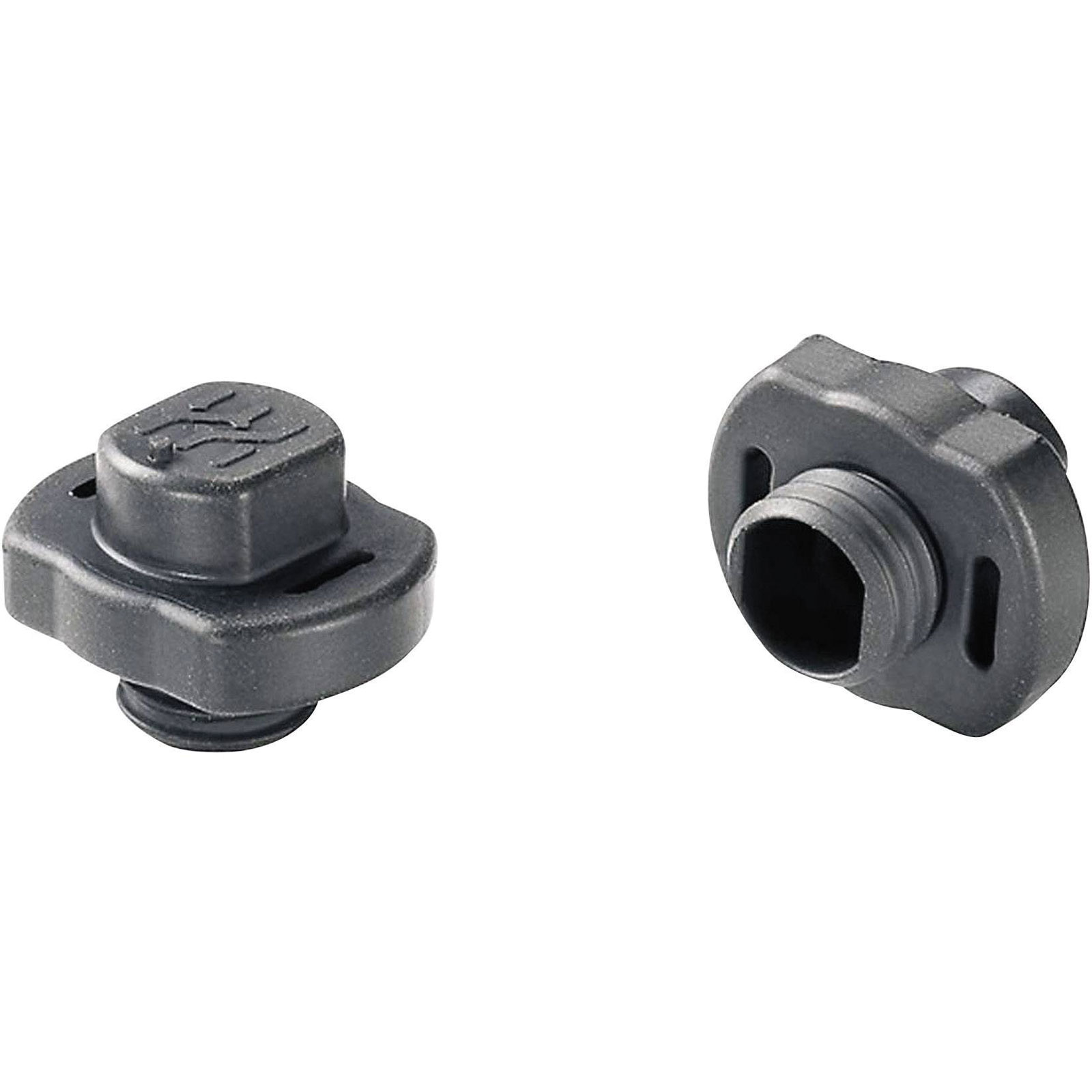

The Weidmüller PV-Stick 1303450000 is a black photovoltaics connector designed for solar applications. This connector is engineered to facilitate efficient and reliable electrical connections in photovoltaic systems. Its main attributes include ease of installation and robust durability, making it ideal for solar power installations.
| Type |
PV-STICK |
| Accessory |
true |
| Approvals |
TÜV Rheinland (IEC |
| Cable Type |
IEC 62930:2017 |
| Certification marks |
Tüv (DIN EN 50,521) |
| Color |
Black |
| Colour |
Black |
| Conductor cross-section, max. |
6mm² |
| Conductor cross-section, min. |
4mm² |
| Connection |
Quick-connect |
| Connector cross section |
4–6mm² |
| Connector Type |
Socket, straight |
| Continuous operating temp., max. |
85°C |
| Continuous operating temp., min. |
-40°C |
| ECLASS 14 |
22-57-02-92 |
| ECLASS 15.0 |
22-57-02-92 |
| ETIM 10 |
EC002928 |
| ETIM 8.0 |
EC002928 |
| ETIM 9.0 |
EC002928 |
| GTIN (EAN) |
4050118102468 |
| IP Rating |
IP65 (closed) |
| IP2x open |
area) |
| Misc Attribute |
PV-STICK |
| Net weight |
15.32g |
| Outer cable diameter, max. |
7.6mm |
| Outer cable diameter, min. |
5.4mm |
| Pollution severity |
3 (2 within the sealed |
| Product Carbon Footprint |
Cradle to gate |
| Protection degree |
IP65, IP68 (1 m / 60 min), |
| Qty. |
10 items |
| quickly and easily without a crimping tool. |
Order No. |
| Rated current |
30 A |
| Rated voltage |
1000V DC |
| Ratings |
IP65 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Spare part |
false |
| Suitable For |
Photovoltaic |
| Temperature Range |
-40 - +85°C |
| Test current |
30A |
| Time interval |
2 years |
| Version |
Photovoltaics, Plug-in connector, DC version |
