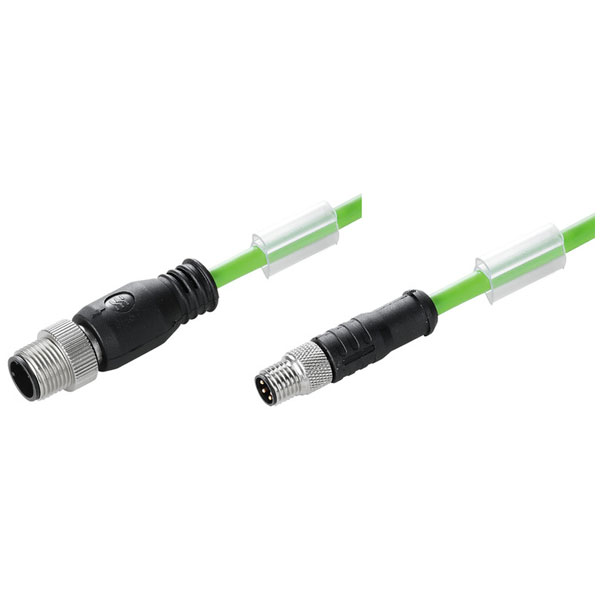

Weidmüllers cable connecting line, with a length of 4.9 metres, is designed for reliable and secure connectivity in industrial applications. It features robust insulation suitable for transmitting signals or power in machinery and automation systems. This product is typically used in environments requiring durable electrical connections, ensuring efficient system integration.
| Colour |
Green |
| Length |
4.9 |
| Type |
Bus line Cable |
| Acceleration |
5 m/s² |
| Anti-kink sleeve |
None |
| Bending cycles |
5 Mio |
| Bending radius, min., moving |
7.5 x cable diameter |
| Bending radius, min., stationary |
4 x cable diameter |
| Cable Length |
4.9 m |
| Colour coding |
blue, orange, white / blue, |
| Colour outer sheath |
Green |
| Configurable cable length |
No |
| Connection thread |
M12 / M8 |
| Contact surface |
Gold-plated |
| Core cross-section |
0.15mm² |
| Degree of protection (IP) |
IP67 |
| ECLASS 14 |
27-06-03-08 |
| ECLASS 15.0 |
27-06-03-08 |
| ETIM 10 |
EC002599 |
| ETIM 8.0 |
EC002599 |
| ETIM 9.0 |
EC002599 |
| GTIN (EAN) |
4050118626452 |
| Halogen |
No |
| Halogen free according to EN IEC 60754-1 |
false |
| Halogen free according to EN IEC 60754-2 |
false |
| Halogen free according to EN IEC 60754-3 |
false |
| Housing main material |
PUR |
| Hybrid cable |
No |
| Insulation |
PP |
| Irradiation crosslinked |
No |
| jumpered |
No |
| LED |
No |
| Material connector housing, connection 1 |
Plastic |
| Material connector housing, connection 2 |
Plastic |
| Net weight |
173.25g |
| Nominal Current |
4 A |
| Number of Poles |
4 |
| Outer cladding in accordance with UL |
20963 (80 °C / 30 V) |
| Outside Diameter |
4.8 mm ± 0.3mm |
| Pin |
Female |
| Pin assignment |
Other |
| Plug left |
M12, IP67, male contact, |
| Plug right |
M8, IP67, male contact, |
| Plugging cycles |
= 100 |
| Pollution severity |
3 |
| Protection degree |
IP67 |
| Qty. |
1 items |
| REACH SVHC |
Lead 7439-92-1 |
| Resistant to welding beads |
No |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant |
| SCIP |
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9 |
| Sheath material |
PUR |
| Sheathing colour |
green |
| Shielded |
Yes |
| Speed |
180 m/s |
| Suitable for cable carriers |
Yes |
| Suitable for cable guide chain |
true |
| Temperature range of housing |
-25…+80°C |
| Temperature range, stationary |
-40...80°C |
| Threaded ring material |
Brass, nickel-plated |
| Tightening torque |
M8: 0.6 Nm, M12: 1.0 Nm |
| Type of connector connection 1 |
M12 |
| Type of connector connection 2 |
Other |
| Version |
Bus line, Connecting line, M12 / M8, Number of |
| Welding spark resistance |
No |
| Wiring diagram |
The ideal tool: Screwty ® with torque function |
