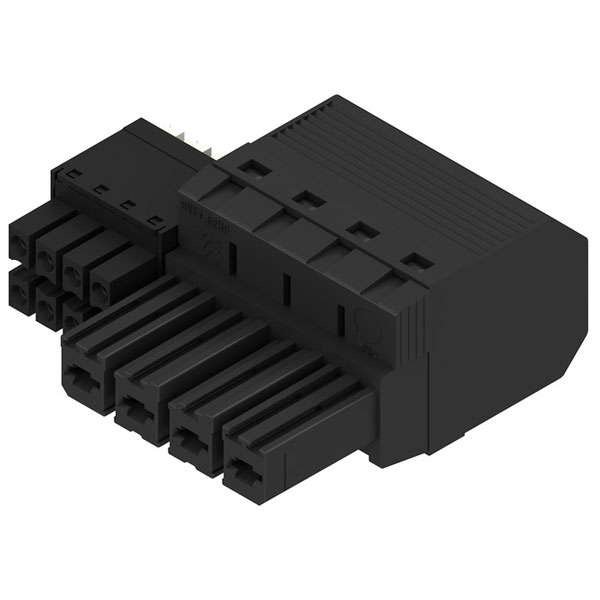

Weidmüller BVF 7.62HP/04/180 BCF/08R SN BK BX is a Hybrid connector (wire connection), 7.62 mm, Number of poles: 4, PUSH IN with actuator, PUSH IN without actuator. Pluggable PCB connection with innovative connection technology for safe and intuitive handling.
| Current Rating |
35A |
| Angle contact/conductor connection |
180° (horizontal) |
| Approvals |
CSA, cURus |
| Coating housing |
Uncoated |
| Color |
Black |
| Connectable cable type |
Tubular cable |
| Connectable conductor cross section fine-strand with cable end sleeve |
1.5 - 10 |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5 - 10 |
| Connectable conductor cross section multi-wired |
10 - 10 |
| Connectable conductor cross section solid-core |
0.5 - 10 |
| Contact Material |
Copper Alloy |
| Contact Type |
Bus |
| Current |
33A |
| Degree of protection (IP), mounted |
IP20 |
| Flammability Rating |
UL94 V-0 |
| Housing Colour |
Black |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
V0 |
| Insulation Material |
Nylon |
| Material contact |
Copper |
| Material insulation body |
Polyamide (PA) |
| Material of contact surface |
Tin |
| Max Operating Temperature |
125°C |
| Min Operating Temperature |
-50°C |
| Modular spacing connections |
7.62 |
| Modular spacing contacts |
7.62 |
| Mount |
Free Hanging |
| Number of Poles |
4 |
| Number of Positions |
12 |
| Number of Rows |
1 |
| Operating Temperature |
-50 - 125 |
| Overvoltage category |
II |
| Packaging |
Box |
| Pollution degree |
2 |
| Rated current In |
34 |
| Rated Surge Voltage |
8 |
| Rated voltage |
1000 |
| Ratings |
IP20 |
| Series |
Omnimate BV |
| Termination |
Screwless |
| Type |
PCB Connector |
| Type of connection |
Flexible PCB-connector |
| Type of electric connection |
Push-in clamp connection |
| Voltage |
600V |
| Voltage Rating |
600V |
| Wire Gauge (Max) |
24AWG |
| Wire Gauge (Min) |
8AWG |
