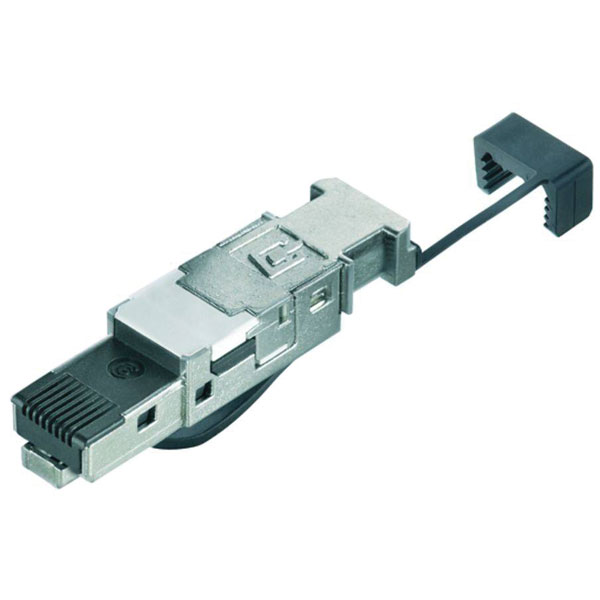

Weidmüller's 1132050000 sensor/actuator data cable features a straight plug design, ideal for reliable data transmission in industrial environments. This cable is suitable for connecting sensors and actuators, facilitating efficient signal communication across various equipment. It is often utilised in automation systems, ensuring seamless integration and functionality.
| Colour |
Black |
| Type |
Sensor/actuator data cable |
| Ability to reconnect |
= 10 cycles (for the same |
| Application-specific communication |
PROFINET installation |
| cable facilities |
instructions |
| Category |
6A (IEC) |
| Certificate no. (cULus) |
E316369 |
| Compatible with Grade2TV according to XP-C 90-483 |
false |
| Compatible with Grade3TV according to XP-C 90-483 |
false |
| Connection |
Weidmüller necessary |
| Connection 1 |
RJ45 |
| Connection 2 |
IDC |
| Connection diameter, flexible |
0.48...0.76mm |
| Connection diameter, solid |
0.41...0.64mm |
| Connection Type |
Insulation displacement connector |
| Connector standard |
IEC 60603-7-51 |
| Contact Material |
Bronze |
| Contact Plating |
Gold |
| Contact Resistance |
= 20 mO |
| Contact surface |
Gold over nickel |
| Current-carrying capacity at 50 °C |
1 A |
| Dielectric strength, contact / contact |
= 1000 V AC/DC |
| Dielectric strength, contact / shield |
= 1500 V AC/DC |
| ECLASS 14.0 |
27-44-03-90 |
| ECLASS 15.0 |
27-44-03-90 |
| ETIM 10.0 |
EC001121 |
| ETIM 8.0 |
EC001121 |
| ETIM 9.0 |
EC001121 |
| extremely flexible |
Weidmüller necessary |
| extremely flexible (AWG) |
Weidmüller necessary |
| Fire Load |
77 kJ |
| GTIN (EAN) |
4032248912148 |
| Halogen |
No |
| Housing main material |
Zinc diecast |
| Industrial packaging |
Yes |
| Insertion force |
= 30 N |
| Insulation cross-section, max. |
1.6mm |
| Insulation cross-section, min. |
0.85mm |
| Insulation Resistance |
= 500 MO |
| IP protection classes |
IEC 60529 |
| Material insulator |
PA UL94-V0 |
| Material locking lever |
PA UL94-V0 |
| Material strain relief |
PA UL94-V0 |
| Max. temperature |
+80°C |
| MICE classification C |
C1 |
| MICE classification E |
E3 |
| MICE classification I |
I1 |
| MICE classification M |
M1 |
| Min. temperature |
-25°C |
| Misc Attribute |
IE-PS-RJ45-FH-BK-B |
| Model |
Plug |
| Net weight |
11.47g |
| Note, very finely stranded line |
Approval of the cable by |
| Packaging |
Bulk |
| Plugging cycles |
750 |
| PoE / PoE+ |
conforming to IEEE |
| Printing |
Dimensioned drawing |
| Protection degree |
IP20 |
| Ratings |
IP20 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| RoHS Compliant |
Yes |
| Sheath diameter, max. |
8.5mm |
| Sheath diameter, min. |
5.5mm |
| Shielding |
Shielded |
| solid (AWG) |
solid |
| Special tool necessary |
false |
| Storage temperature |
Operating temperature |
| stranded, min. |
flexible |
| Suitable for flat cable |
false |
| Suitable for litz wire conductor |
true |
| Suitable for round cable |
true |
| Suitable for solid conductors |
true |
| Termination |
IDC |
| Transparent |
false |
| Type of connector |
RJ45 8(8) |
| UL File Number Search |
UL Website |
| UL standard for communication |
UL 1863 |
| Version |
RJ45 IDC plug, Cat.6A / Class EA (ISO/IEC 11801 |
| Wire connection cross section, finely |
0.14mm² |
| Wire Gauge (Max) |
26AWG |
| Wire Gauge (Min) |
22AWG |
| Wire/Cable Type |
Round |
| Wiring |
8-core, EIA/TIA T568 B |
