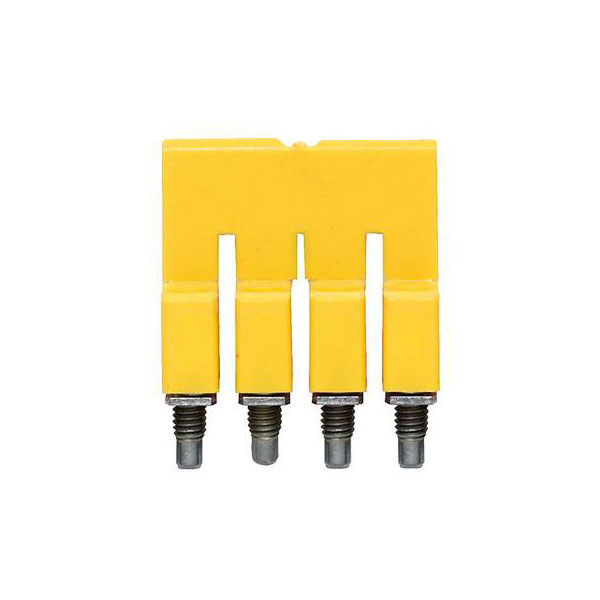

The Weidmüller 1053960000 Cross Link is a high-quality industrial component designed for secure continuity in switchboard and serial terminal connections. This cross link ensures efficient electrical distribution and is commonly utilised in various industrial and production settings. Packaged in sets of 10 pieces, it is ideal for ensuring reliable connectivity in complex electrical systems.
| Accessory Type |
Cross link |
| Used With |
W-Series |
| Ambient temperature |
-60 °C…85°C |
| Basic material |
PA 66 |
| Color |
Yellow |
| Colour |
Yellow |
| Contains Lead |
No |
| Continuous operating temp., max. |
130°C |
| Continuous operating temp., min. |
-60°C |
| Depth |
18mm |
| Depth (inches) |
0.7087 inch |
| Dim |
(L x W x H) 24.4 x 7 x 18 mm |
| ECLASS 14 |
27-25-03-03 |
| ECLASS 15.0 |
27-25-03-03 |
| ETIM 10 |
EC000489 |
| ETIM 8.0 |
EC000489 |
| ETIM 9.0 |
EC000489 |
| Explosion-tested version |
No |
| Explosion-tested version Ex e |
false |
| Factory colour |
Yellow |
| GTIN (EAN) |
4008190158446 |
| Height |
18mm |
| Height (inches) |
0.9606 inch |
| Industrial packaging |
Yes |
| Installation advice |
Direct mounting |
| Insulated |
true |
| Length |
24.4mm |
| Misc Attribute 1 |
WQV 2.5 / 5 |
| Misc Attribute 2 |
WQV 2.5/5 |
| Model |
Transverse connector |
| Modular spacing |
5.1 |
| Mounting method |
Screwable |
| Net weight |
3.7g |
| Nominal Current |
32 A |
| Number of bridged clamps |
5 |
| Number of Contacts |
5 |
| Number of Poles |
5 |
| Number of Positions |
5 |
| Number of Rows |
1 |
| Order No. |
9004500000 |
| Package Quantity |
10 |
| Packaging |
Bag |
| Pitch in mm (P) |
5.10mm |
| Radiation Hardening |
No |
| Rated current In |
32 |
| Rated voltage |
400 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| RoHS Compliant |
Yes |
| Series |
W |
| Storage temperature |
-25 °C...55°C |
| Type of fixing |
when screwed in |
| UL 94 flammability rating |
V-0 |
| Weight |
3.7g |
| Width |
7mm |
| Width (inches) |
0.2756 inch |
| With contact protection |
true |
