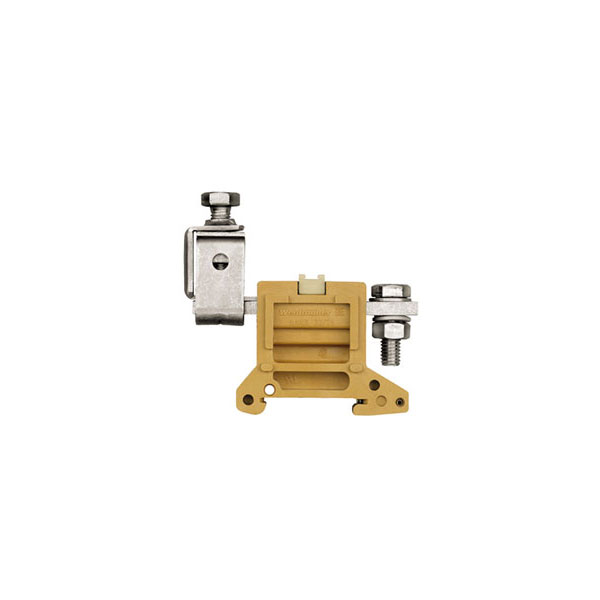

Weidműller 0637120000 Terminal Screw Connection 50mm

Weidmüller manufactures the 0637120000 terminal with a robust screw connection suitable for cables up to 50 mm². The product ensures reliable electrical connectivity in heavy-duty applications. It is typically used in industrial environments for power distribution and control systems.

Accessory Type	Terminal Block
46228/4, min.	46228/1, max.
Ambient temperature	-60 °C…85°C
Approvals	IEC, CSA, CE, UR
Basic material	KrG
Certificate No. (CSA)	12400-199
Certificate No. (UR)	E60693
Clamping range, max.	70mm²
Clamping range, min.	10mm²
Clamping screw	M 8
Closing plate required	true
Color	Beige
Colour	Yellow
Conductor cross-section, flexible plus	35mm²
Conductor size Factory wiring max. (UR) 000 AWG	Current size C (UR)
Conductor size Field wiring max. (UR)	000 AWG
Conductor size Field wiring min. (UR)	6 AWG
Connectable conductor cross section fine-strand with cable end sleeve	10 - 70
Connectable conductor cross section fine-strand without cable end sleeve	10 - 70
Connectable conductor cross section multi-wired	10 - 70
Connectable conductor cross section solid-core	10 - 16
Connection cross-section, finely	10mm²
Connection cross-section, stranded,	70mm²
Connection cross-section, stranded, min.10 mm²	Wire connection cross-section, solid
Connection direction	on side
Contains Lead	No
Continuous operating temp., max.	130°C
Continuous operating temp., min.	-60°C
core, min.	stranded, min.
Current	165A
Current at maximum wires	192 A
Current Rating	150A
Current size C (CSA)	170 A
Depth	84.5
Depth (inches)	3.3268 inch
End cover plate required	Yes
Explosion-tested version	No
Explosion-tested version Ex e	false
Flammability Rating	UL94 V-0
Gauge to IEC 60947-1	B11
GTIN (EAN)	4008190111496
Height	87
Height (inches)	3.4252 inch
Housing Color	Beige
Inflammability class of insulation material according to UL94	V0
Insulation Material	Plastic
Internally connected stages	false
Length	87mm
Levels cross-connected internally	No
Material insulation body	Duroplast
max.	min.
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-60°C
Mount	DIN Rail
Mounting method	DIN rail (top hat rail) 35mm
Mounting rail	TS 35
Net weight	210.1g
N-function	No
Nominal Current	150 A
Number of Circuits	1
Number of clamp positions per level	2
Number of clamping points per level	2
Number of connections	1
Number of Contacts	1
Number of levels	1
Number of Positions	2
Number of potentials	1
Number of potentials per tier	1
Number of Rows	1
Number of similar terminals	1
Open sides	Open
Operating Temperature	-60 - 130
Packaging	Bulk
PE connection	No
PE function	No
PEN function	No
Pollution severity	3
Power loss in accordance with IEC	4.80 W
Radiation Hardening	No
Rated cross-section	50mm²
Rated current In	150
Rated DC voltage	1000 V
Rated impulse withstand voltage	8 kV
Rated voltage	1000
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
RoHS Compliant	No
SCIP	999cd67e-471e-4085-8dba-1342fcea86de
Series	SAK
Standards	IEC 60947-7-1
Storage temperature	-25 °C...55°C
stranded, min.	max.
Stripping length	26mm
Suitable for conductor material	Copper
Terminal Width	32mm
Termination	CLAMP
Tightening torque, max.	12 Nm
Tightening torque, min.	6 Nm
Type of connection	Screw connection
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Type of mounting	Snap-on
UL 94 flammability rating	V-0, 5VA
UL File Number Search	UL Website
Voltage	600V
Voltage Rating	8kV
Voltage size C (CSA)	600 V
Voltage size C (UR)	600 V
Volume resistance according to IEC	0.21 mO
Width	32
Width (inches)	1.2598 inch
Wire connection cross-section, solid	10mm²
Wire cross section max. (CSA)	00 AWG
Wire cross section min. (CSA)	1 AWG
Wire Gauge (Max)	6AWG
Wire Gauge (Min)	0AWG
