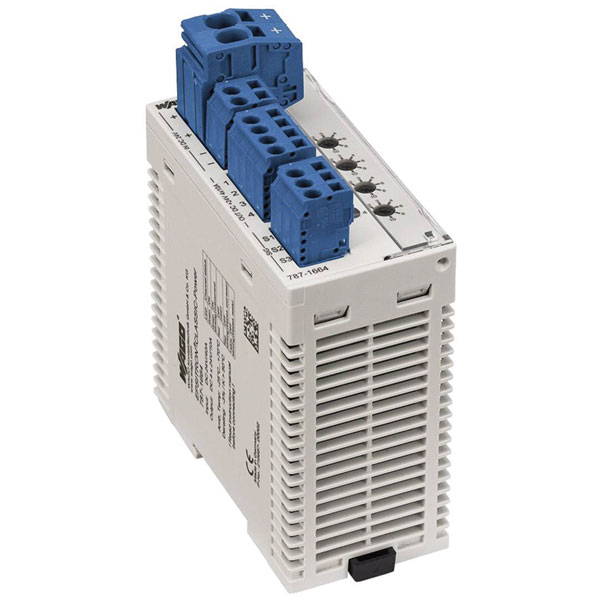

WAGO 787-1664 EPSITRON Circuit Breaker 24V DC 10A 240W 4 Outputs

The WAGO EPSITRON 787-1664 is an industrial power supply unit designed for DIN rail mounting. It delivers 24 V DC output with a capacity of 10 A and 240 W, featuring four outputs. This reliable power supply is ideal for industrial and commercial applications where robust and efficient power distribution is essential.

Type	RCCB
Category	Protective Devices and Electronics
Connection	Spring-loaded terminal
Current Rating	10a
Depth	90mm
Dim	(W x H x D) 45 x 115.5 x 90 mm
Fine-stranded conductor max. AWG	8 AWG
Fine-stranded conductor max. mm²	10mm²
Fine-stranded conductor min. AWG	8 AWG
Fine-stranded conductor min. mm²	0.5mm²
Height	115.5mm
Height inch	3.543inches
Height mm	90mm
Input Voltage	18 - 30V DC
Max. output current	10A
Maximum Input Volage	30V AC
Minimum Input Volage	18V AC
Misc Attribute	EPSITRON® 787-1664
Nominal Input Voltage	24 V/DC
Number of Outputs	4
Output current (details)	4 x 1 - 10A
Output current (max.) - rounded	10A
Output Voltage	4 x 24V DC
Output voltage (max.)	24V DC
Output voltage (min.)	24V DC
Output voltage (nominal)	24V DC
Power	240W
Product Main Function	Electronic circuit breaker
Single-stranded conductor max. AWG	8 AWG
Single-stranded conductor max. mm²	10mm²
Single-stranded conductor min. AWG	20 AWG
Single-stranded conductor min. mm²	0.5mm²
Stripping length of 1 mm	13mm
Stripping length up to 1 mm	15mm
Unit Weight	KGM
Voltage Rating - DC	24V DC
Weight	170g
Width	45mm
Width inch	1.772inches
Width mm	45mm
