Wachendorff UR3274S3 Temperature Controller Universal PID IP65 8A Relay

Wachendorff
Order Code:

10-9697

Brand: Wachendorff MPN: UR3274S3 EAN-13: 4016138746655

Discontinued

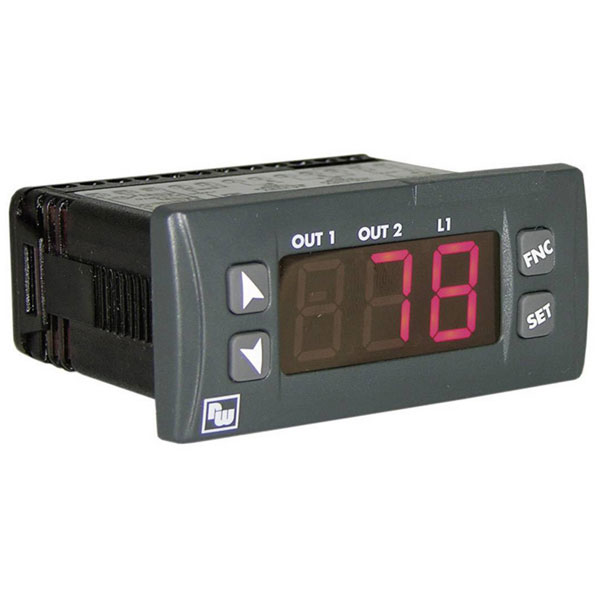

The Wachendorff UR3274S3 PID temperature controller offers precise temperature management for various sensors like Pt100 and thermocouples types K, S, R, and J. It features an 8 A relay, a 5 A relay, and SSR in a compact design measuring 53 x 77 x 35 mm. Typical applications include industrial processes requiring accurate thermal regulation.
Type Temperature controller
Assembly dimensions 32 x 74mm
Current Consumption 20mA
Dim (L x W x H) 53 x 77 x 35 mm
Height 35mm
Interfaces RS485 Modbus RTU
IP Rating IP65 (on front)/IP20 (on back)
Length 53mm
Mounting Recess-mount
Number of relay outputs 2
Number of transistor outputs 1
Operating Voltage 230V AC
Outputs 2 Relay (alternating 8 A and no 5A) and SSR Driver
Sensor Type Thermal element type K, S, R, J, Pt100, Pt500, Pt1000, Ni100, PTC 1K, NTC10K
Thermostat type PID
Width 77mm
