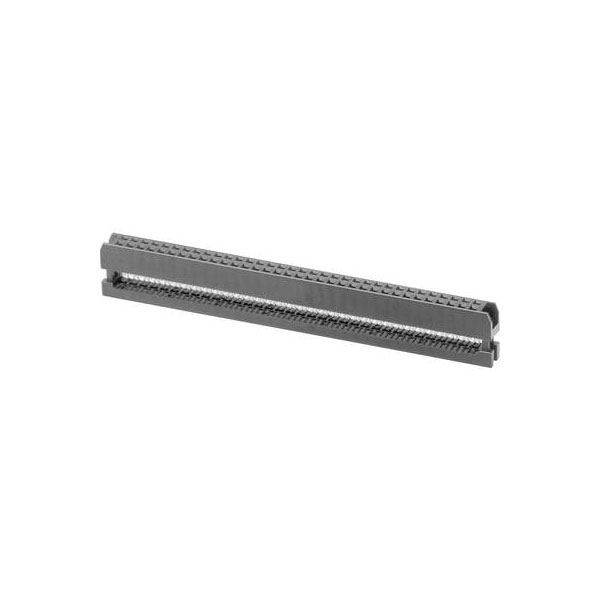

W & P Products 343-50-60-1 Pin Connector 2 mm Pitch 50 Pins 2 Rows

Image Representative of Range

W & P Products 343-50-60-1 Pin Connector 2 mm Pitch 50 Pins 2 Rows

W & P Products
Order Code:

10-9602

Brand: W & P Products MPN: 343-50-60-1 EAN-13: 2050001140944
Qty Unit Price (Ex VAT)
3+ £1.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
32 in stock, despatched in 4 working days

W & P Products manufactures the 343-50-60-1 pin connector with a contact spacing of 2 mm across two rows and 50 total pins. This product is ideal for applications requiring compact and efficient connectivity solutions, such as in consumer electronics or computer hardware. The precision design supports reliable electronic interfacing in various technological setups.
Type Pin connector
Board contact surface Gold plated
Case Material Thermoplastic material
Connection Cut & Clip
Connector contact surface Gold plated
Connector Type Power strip
Contact Material Copper alloy
CS 2mm
Dim (L x W x H) 4.2 x 55.2 x 8.8 mm
Factory colour Black
Height 8.8mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 4.2mm
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 2 Straight
Nominal Current 1A
Nominal current (details) 1A
Nominal Voltage 500V AC
Number of Rows 2
Pins 2 x 25
Pins per row 25
Temperature Range -40 - +105°C
Total number of pins 50
Width 55.2mm
