W & P Products 266-201-10-00 Short-circuit Bridge, Pitch 1.27 nm

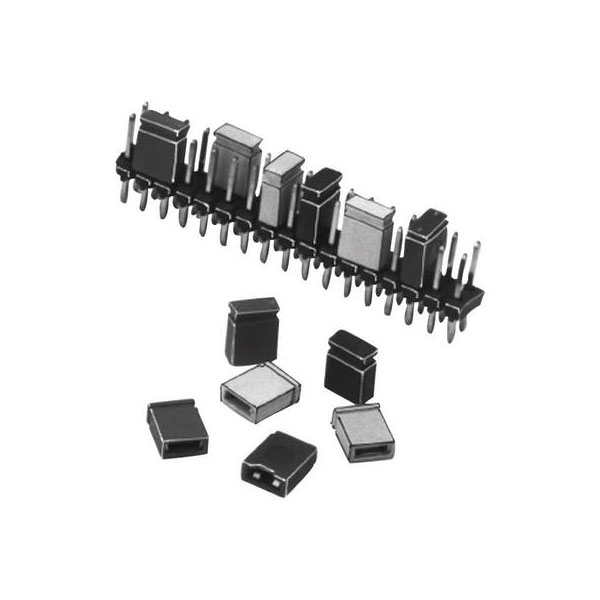

Image Representative of Range

W & P Products 266-201-10-00 Short-circuit Bridge, Pitch 1.27 nm

W & P Products
Order Code:

10-9596

Brand: W & P Products MPN: 266-201-10-00 EAN-13: 2050001141293
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
620 in stock, despatched in 4 working days

W & P Products manufactures the 266-201-10-00 short-circuit bridge, featuring a pitch of 1.27 mm. This shorting jumper is ideal for electrical circuit bridging and shunting. It is commonly used in applications requiring reliable temporary connections and circuit testing.
Type Shorting jumper
Height 5.5mm
Colour Black
Contact Material Copper alloy
Contact surface Gold on nickel
CS 1.27mm
Dim (L x W x H) 2.5 x 1.25 x 5.5 mm
Insulation Material Thermoplastic material
Insulation Resistance
> 109Ω
Length 2.5mm
Nominal Current 1A
Nominal current (details) 1A
Nominal Voltage 500V AC
Pins 2
Pins per row 2
Resistance
< 20mΩ
Temperature Range -40 - +105°C
Width 1.25mm
