W&P 257-040-2-50-00-6 SIL Socket, 2 Rows, 20 Pins/Row, Precision Design

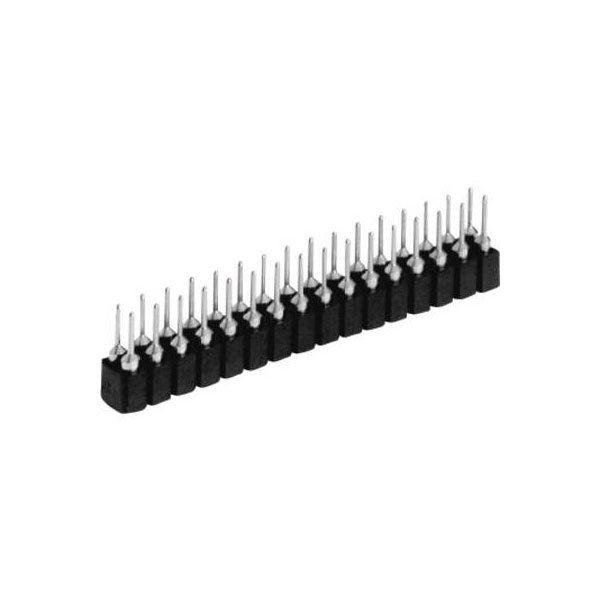

Image Representative of Range

W&P 257-040-2-50-00-6 SIL Socket, 2 Rows, 20 Pins/Row, Precision Design

W & P Products
Order Code:

10-9594

Brand: W & P Products MPN: 257-040-2-50-00-6 EAN-13: 2050001574619
Qty Unit Price (Ex VAT)
2+ £2.87
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
20 in stock, despatched in 4 working days

The W & P Products SIL socket features precision receptacles with 2 rows and 20 pins per row, designated as part number 257-040-2-50-00-6. This component is typically used in electronic assemblies requiring high reliability and precision connections. Common applications include circuit boards in computing and telecommunications equipment.
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
Contact Material Copper alloy
Contact surface Tin plated
CS 2mm
Dim (L x W x H) 40.00 x 7.40 x 4.20 mm
Dimensions L x B x H 40 x 4.2 x 7.4 mm
Factory colour Black
Height 4.20mm
Industrial packaging No
Length 40.00mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 150V DC
Number of Rows 2
Pin length (PCB) 3.20mm
Pin Ø 0.40mm
Pin shape Circular
Pins per row 20
Separable No
Socket depth 3.50mm
Total number of pins 40
Type Receptacles (precision)
Width 7.40mm
