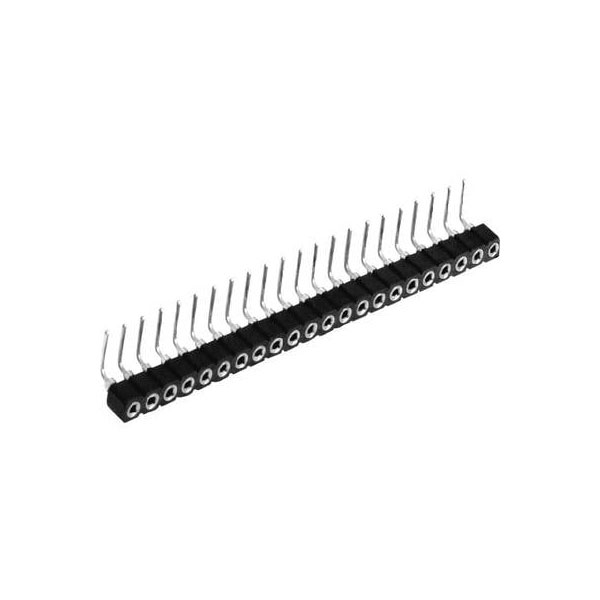

W&P 257-020-3-50-00-6 SIL Socket, 1 Row, 20 Pins, 0.50mm Square Pins

W & P Products manufactures a precision SIL socket with one row and 20 pins. This receptacle, model 257-020-3-50-00-6, is designed for high-precision electronic connections. It is typically used in circuits requiring reliable connections in compact spaces.

Pitch	0.50mm
No. of Rows	1
No. of Ways	20
Case Material	Thermoplastic material
Connection	Print
Connector orientation	Parallel (to the PCB)
Connector Type	Power strip, right angle
Contact Finish	Tin plated
CS	2mm
Dim	(L x W x H) 40.00 x 5.60 x 5.40 mm
Dimensions	L x B x H 40 x 5.6 x 5.4
Factory colour	Black
Height	5.40mm
Industrial packaging	No
Length	40.00mm
Maximum Temperature	+125°C
Min. temperature	-55°C
Nominal Current	3A
Nominal current - rounded value	3A
Nominal Voltage	150V DC
Pin length (PCB)	3.20mm
Pin Ø	0.40mm
Pin shape	Circular
Pins per row	20
Separable	No
Socket depth	3.50mm
Type	Receptacles (precision)
Width	5.60mm
