W&P 257-004-1-50-00-6 SIL Socket 1x4 Precision Round/Square Pins

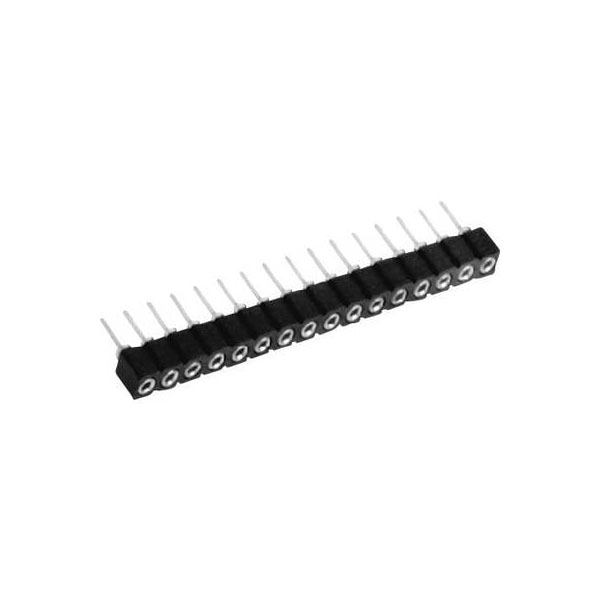

Image Representative of Range

W&P 257-004-1-50-00-6 SIL Socket 1x4 Precision Round/Square Pins

W & P Products
Order Code:

10-9584

Brand: W & P Products MPN: 257-004-1-50-00-6 EAN-13: 2050001574527
Qty Unit Price (Ex VAT)
10+ £0.458
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
324 in stock, despatched in 4 working days

The W & P Products SIL socket, model number 257-004-1-50-00-6, is a precision receptacle featuring one row with four pins. This component is ideal for applications that require high precision and reliability, such as in electronic connectors and circuit boards. Its design ensures stable performance in intricate electronic assemblies.
Case Material Thermoplastic material
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector Type Power strip, straight
Contact Material Copper alloy
Contact surface Tin plated
CS 2mm
Dim (L x W x H) 8.00 x 7.40 x 2.20 mm
Dimensions L x B x H 8 x 2.2 x 7.4 mm
Factory colour Black
Height 2.20mm
Industrial packaging No
Length 8.00mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 150V DC
Number of Rows 1
Pin length (PCB) 3.20mm
Pin Ø 0.40mm
Pin shape Circular
Pins per row 4
Separable No
Socket depth 3.50mm
Total number of pins 4
Type Receptacles (precision)
Width 7.40mm
