W & P 154-040-2-50-00 Precision Socket Connector 2x20 Pins 3A

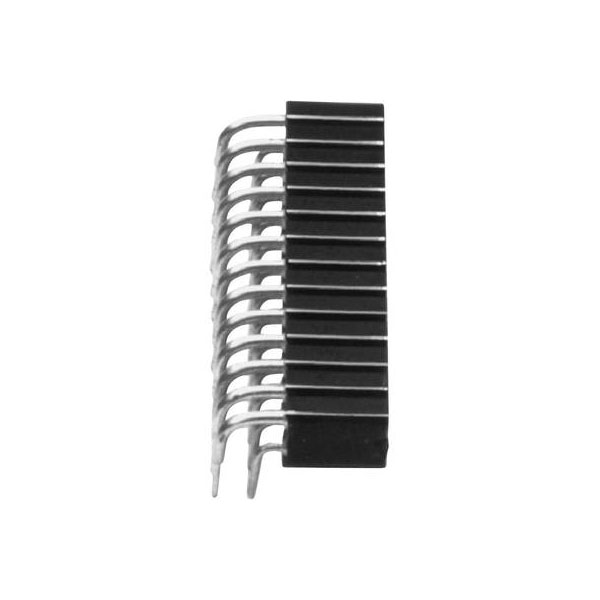

Image Representative of Range

W & P 154-040-2-50-00 Precision Socket Connector 2x20 Pins 3A

W & P Products
Order Code:

10-9569

Brand: W & P Products MPN: 154-040-2-50-00 EAN-13: 2050001143495
Qty Unit Price (Ex VAT)
1+ £6.02
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
141 in stock, despatched in 4 working days

W & P Products manufactures the 154-040-2-50-00 precision SIL socket connector, featuring 2 x 20 pins and a nominal current rating of 3 A. This connector is commonly used for reliable electrical connections in electronic and industrial equipment. Its precision design ensures optimal performance in high-density applications.
Case Material Thermoplastic material
Connection Print
Connector orientation Parallel (to the PCB)
Connector Type Power strip, right angle
Contact Material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 50.8 x 10.84 x 8.20 mm
Factory colour Black
Height 8.20mm
Industrial packaging No
Insulation Resistance
> 1010Ω
Length 50.8mm
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 2 Angled
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 150V DC
Number of Rows 2
Pin length (PCB) 3.30mm
Pin length (receptacle) 2.40mm
Pin Ø 0.60mm
Pin shape Circular
Pins 2 x 20
Pins per row 20
Separable No
Socket depth 5.80mm
Temperature Range -55 - +125°C
Total number of pins 40
Type SIL socket (precision)
Width 10.84mm
