W & P 154-008-2-50-00 Precision Socket 2x4 Pins 3A Round/Square Pins

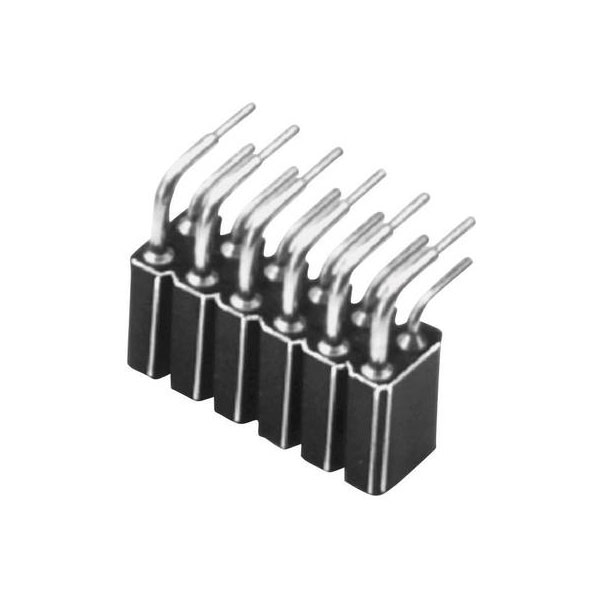

Image Representative of Range

W & P 154-008-2-50-00 Precision Socket 2x4 Pins 3A Round/Square Pins

W & P Products
Order Code:

10-9562

Brand: W & P Products MPN: 154-008-2-50-00 EAN-13: 2050001143440
Qty Unit Price (Ex VAT)
5+ £1.32
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
144 in stock, despatched in 4 working days

W & P Products manufactures the 154-008-2-50-00 precision socket connector, known for its 2 x 4 pin configuration and 3 A current rating. These precision receptacles are ideal for applications requiring reliable and durable electrical connections. Typical uses include electronic devices and circuitry where space is limited and performance is critical.
Case Material Thermoplastic material
Connection Print
Connector orientation Parallel (to the PCB)
Connector Type Power strip, right angle
Contact Material Copper alloy
Contact surface Tin plated
CS 2.54mm
Dim (L x W x H) 10.84 x 10.16 x 8.20 mm
Factory colour Black
Height 8.20mm
Industrial packaging No
Insulation Resistance
> 1010Ω
Length 10.84mm
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute 2 Angled
Nominal Current 3A
Nominal current - rounded value 3A
Nominal current (details) 3A
Nominal Voltage 150V DC
Number of Rows 2
Pin length (PCB) 3.30mm
Pin length (receptacle) 2.40mm
Pin Ø 0.60mm
Pin shape Circular
Pins 2 x 4
Pins per row 4
Separable No
Socket depth 5.80mm
Temperature Range -55 - +125°C
Total number of pins 8
Type Receptacles (precision)
Width 10.16mm
