VOLTCRAFT WBP-120 IR camera -20 up to 550 °C20 x 90 Pixel camera Wi-Fi Wit

VOLTCRAFT
MPN
VC-12628680
Brand
VOLTCRAFT
EAN-13
4064161208411
Order Code
08-1637
Country of Origin
China
View Full Product Range (6)

Discontinued

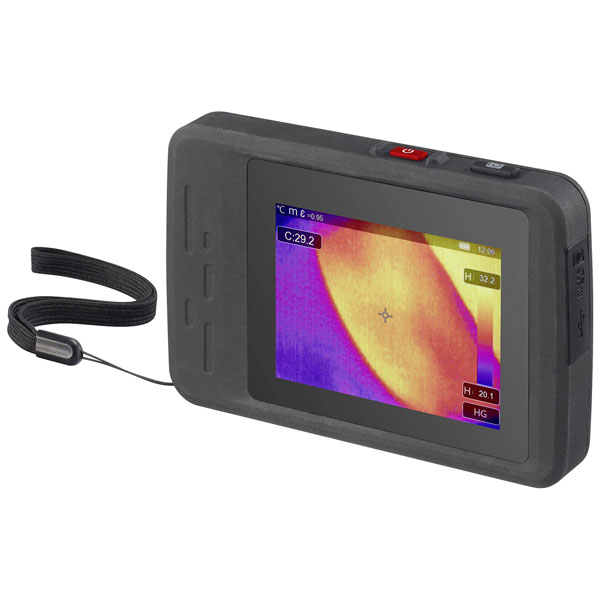

The VOLTCRAFT WBP-120 is an infrared camera capable of measuring temperatures from -20 to 550 °C with 120 x 90 pixel resolution and a 50 Hz refresh rate.

It features a built-in digital camera and Wi-Fi connectivity, and can withstand falls from heights of up to 2 m.

This thermal camera is ideal for thermography and thermal imaging applications in industrial maintenance and electrical inspections.


Type Thermal Imaging Camera
Resolution 640 x 480 Pixel
Manufacturers Warranty 3 Years
Accuracy ± 2°C
Basic Accuracy 2%
Bolometer array 120 x 90 Pixel
Calibrated to Manufacturer's standards (no certificate)
Colour schemes 8
Connection USB
Digital zoom 32
Dimensions (L x W x H) 22 x 128 x 90 mm
Emission level (max.) 1.00
Emission level (min.) 0.01
Focus Automatic
Frame Rate 50Hz
Height 90mm
IP Rating IP54
Length 22mm
Min. focusing distance 0.5m
Misc Attribute WBP-120
Plastic free packaging Plastic-free packaging
Power supply (details) Li-ion Battery, 3.7V
Temperature Measurement Range -20 to 550°C
Temperature reading range (max.) 550°C
Temperature reading range (min.) -20°C
Temperature resolution 0.1°C
Thermal Sensitivity 80 mK
Weight 196g
Width 128mm
