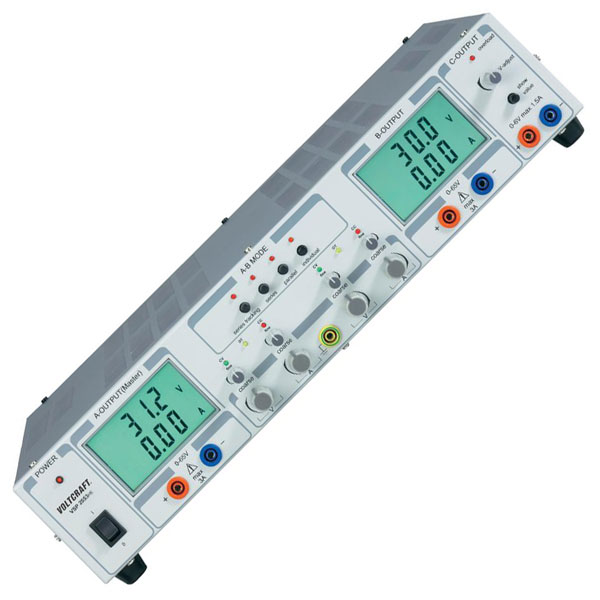

VOLTCRAFT VSP 2653 Remotely Controllable Variable DC Power Supply

The VOLTCRAFT VSP-2653 is from the successful VSP series of remotely controllable power supplies with sense function. It features 3 outputs with setting ranges 0.1 to 65V DC (0 to 3A), 0.1 to 65V DC (0 to 3A), 0 to 6V DC (1.5A) with course and fine adjustment on output 1 for V and I and adjustment for V on output 2.

• Calibration possible to: ISO/DKD
• Connections: 4mm safety sockets
• Remote and sense: via screw terminals at rear side
• Dimensions: 442(W) x 107(H) x 355(D)mm
• Input voltage: 230V AC
• Inputs: IEC 320 C14
• Load control: <5mA
• Max. Temperature: +40°C
• Min. Temperature: 0°C
• Number of outputs: 3
• Output current 1: 0 to 3A
• Output current 2: 0 to 3A
• Output current 3: 1.5A
• Output voltage 1: 0.1 to 65V DC
• Output voltage 2: 0.1 to 65 V DC
• Output voltage 3: 0 to 6V DC
• PSU type: Switched Mode
• Power: 399W
• Specification: Bench
• Temperature range: 0°C up to +40°C
• Type (manufacturer type): VSP 2653
• Weight: 7kg
• Supplied with DC bench power supply, power cable, user manual
