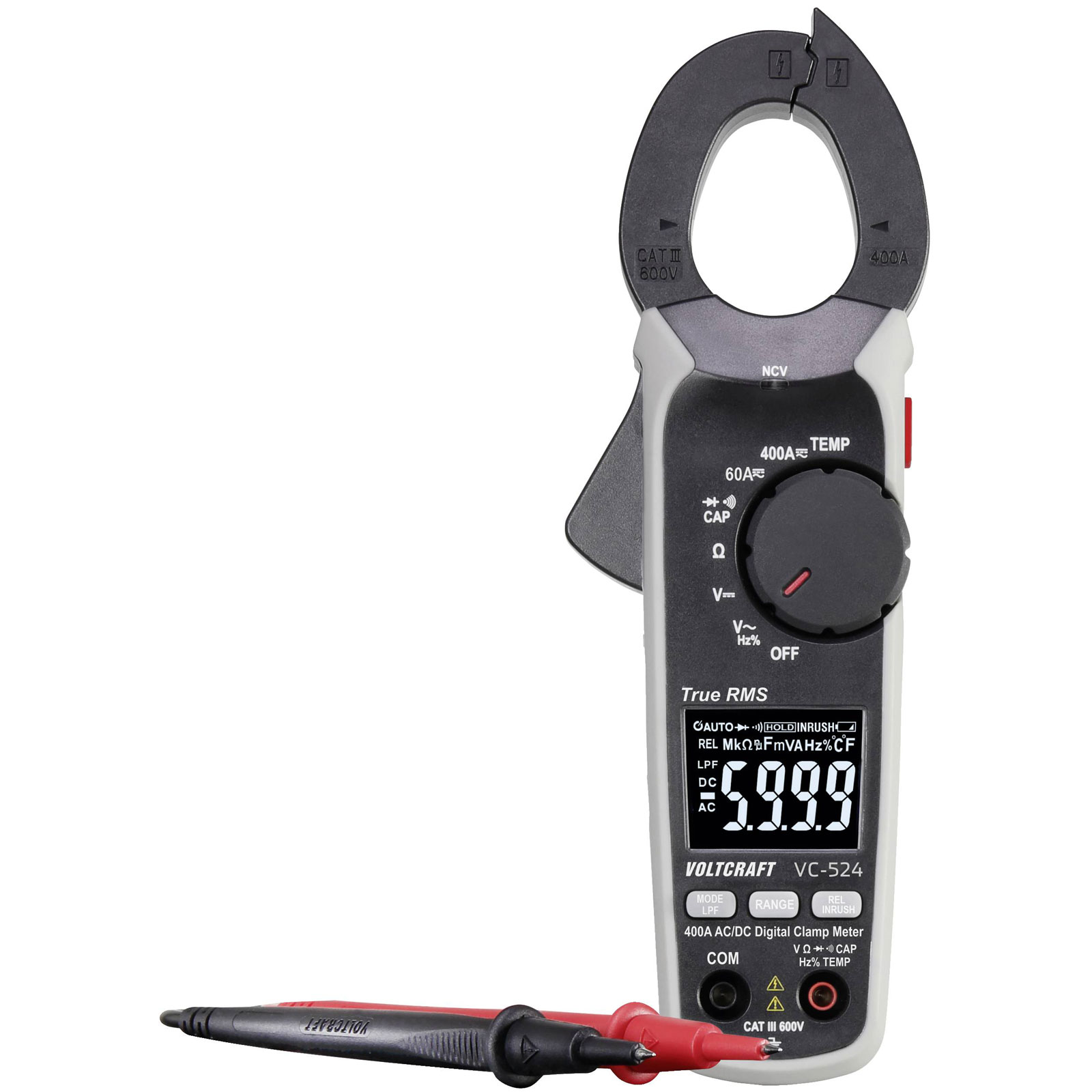

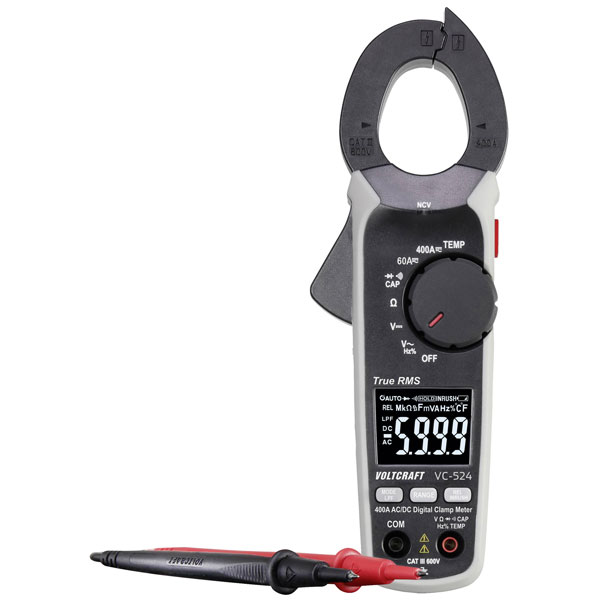

The VOLTCRAFT VC-524 Clamp Meter is a digital multimeter designed for CAT III 600 V environments, offering precise readings with a 6000 count display.
Manufactured by VOLTCRAFT, it functions as a voltage tester, ammeter, and frequency tester.
This multi-purpose tester is ideal for professional electricians and technicians conducting electrical measurements and diagnostics.
| Type |
Clamp meter |
| A AC reading range (min.) |
0.01A |
| A DC reading range (max.) |
400A |
| Amperage reading range AC (max.) |
400A |
| Amperage reading range DC (min.) |
0.01A |
| Basic accuracy |
0.8% |
| Calibrated to |
Manufacturer's standards (no certificate) |
| Current reading |
AC/DC |
| Dim |
(L x W x H) 35 x 209 x 70 mm |
| Display |
Digital |
| Display (counts) |
6000 |
| Frequency Range |
50 Hz - 400Hz |
| Frequency reading range |
0.001 Hz - 10kHz |
| Height |
70mm |
| Length |
35mm |
| Measurement type (details) |
True RMS |
| Misc Attribute |
VC-524 |
| Opening range of current clamps |
32mm |
| Plastic free packaging |
Plastic-free packaging |
| Reading category |
CAT III 600 V |
| Reading range - capacity |
10 pF - 6000µF |
| Reading range - resistance |
0.1 Ω - 60MΩ |
| Temperature |
-20°C - 760°C |
| V AC reading range (max.) |
600V |
| V AC reading range (min.) |
0.001V |
| Voltage DC reading range (max.) |
600V |
| Voltage metering |
AC/DC |
| Voltage reading range DC (min.) |
0.1mV |
| Weight |
270g |
| Width |
209mm |
