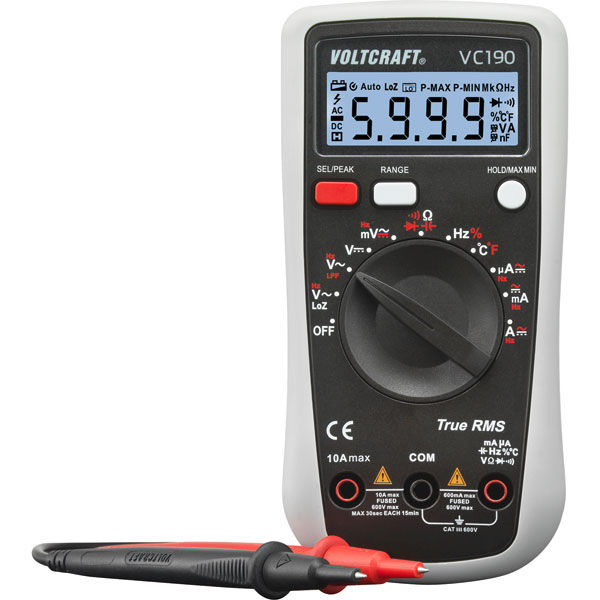

VOLTCRAFT VC190 Digital Multimeter CAT III 600V Display (Counts): 6000

Order Code:

65-4049

Brand: VOLTCRAFT MPN: VC-11341230 EAN-13: 4064161079783

Discontinued


The Voltcraft VC190 is a true rms digital multimeter that is designed for ease of use. Ideal for use by professionals and for DIY.

The unit can measure voltage DC and AC, current DC and AC, frequency, duty cycle, capacitance, resistance, temperature, acoustic continuity test, diode test. There are HOLD, MAX/MIN and PEAK functions to assist you while you are working. The True RMS measurement gives greater accuracy than conventional meters that are prone to large measurement errors.

The multimeter is easy to read and has a 6000 count display. The compact and robust body has a rubber coating that provides lots of grip, and the stand on the rear allows you to place the unit in a position where you can read the display, keeping both hands free.


  • Impedance selector switch
  • Auto range
  • Low-pass filter and low impedance AC voltage measurement
  • Automatic display white backlight
  • CAT III 600V
  • Self-resetting fuse
  • Factory calibration ensures accurate readings
  • Low-battery indicator
  • Supplied with battery, test leads, tip temperature contact probe, user manual
  • Voltcraft VC271 SE
Measurements:
Voltage600V AC/DC
Current10A AC/DC
Frequency10Hz to 10MHz
Capacitance60mF
Resistance60MΩ
Temperature-40°C to +400°C
ContinuityYes
Diode testYes
AC Voltage Max 600V
DC Voltage Max 600V
Display Counts 6000
Maximum Resistance 60MΩ
Frequency Max. 10MHz
Number of Digits 4
