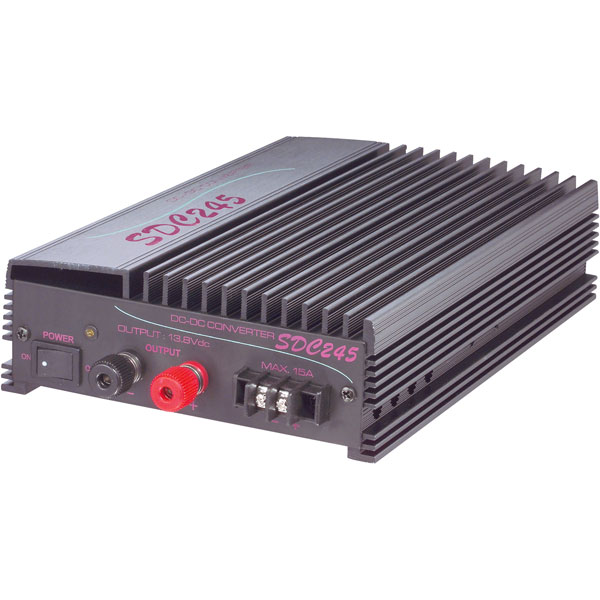

The Voltcraft SDC-245 550W switched-mode DC/DC converter enables operation of 12V DC consumer items, such as cold bags, refrigerator boxes or cabinets and mobile HiFi units from a 24V DC battery supply system. The 24V DC supply is converted to 12V DC via a clocked IC-controlled circuit. This device is characterized by small dimensions and low weight compared with conventional in-line voltage transformers. The degree of efficiency is approx. 85%. An integrated fan provides sufficient cooling. The device has automatic cutout for short-circuit protection, with automatic re-start.
- High degree of efficiency 85%
- High performance 550 W
- Input voltage 24V DC
- Output voltage 13.8V DC at 2 x 20A
- Dimensions 240 x 156 x 57mm
- Weighs 2.2kg
Mounting Style |
Screw terminals |
Number of Outputs |
1 |
Output Voltage Min |
N/A |
Output Voltage Max |
24V |
Output Current Min |
N/A |
Output Current Max |
40000mA |
Power Rating |
550W |
Supply Voltage Range |
24V |
Temperature Range |
N/A |
