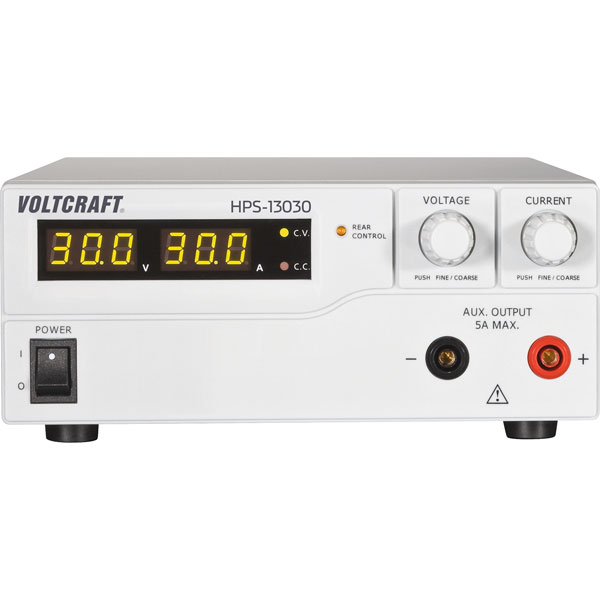

The HPS-13030 from Voltcraft's HPS series of high power DC bench power supplies is extremely compact at 200 x 90 x 275mm, thanks to its primary switched mode technology. It has a full rated current range of 0A to 30A via the PSU's rear output, while its front output provides current limited to 5A.
Select from 4 operating modes: Normal, Preset, Remote Control and Set. In Normal mode, settings are made using the HPS-13030's front panel. In Preset mode, stored settings are used and the front panel becomes inactive.
Set mode is used to programme the 3 presets using the front panel controls. In Remote Control mode, the power supply responds to external DC voltage signals to alter Voltage, Current, and Output On/Off.
- 3 user definable presets for U und I
- Voltage, current and output On/Off can be remote controlled
- Digital double function adjustment control for coarse and fine control
- Overload protection
- Overheating protection
- Current limiting
- Temperature regulated unit fans
- Outputs: 1
- Max power: 900W
- Voltage setting range(s): 1V DC to 30V DC
- Current setting range(s): 0A to 30A
- High contrast digital LCD display for voltage and current
- Remote control via external DC voltage
- PSU Technology: Switched Mode
- Type: Bench
DC Bench power supply, power cable, remote control plug connection, user manual.
Not recommended for use as a battery charger.
| Number of Outputs |
1 |
| Output Current Max. |
30A |
| Output Current Min. |
0A |
| Output Voltage Max. |
30V |
| Output Voltage Min. |
1V |
| Power Rating |
900W |
| Supply Voltage Range |
230V |
| Temperature Range |
0 to +40°C |
