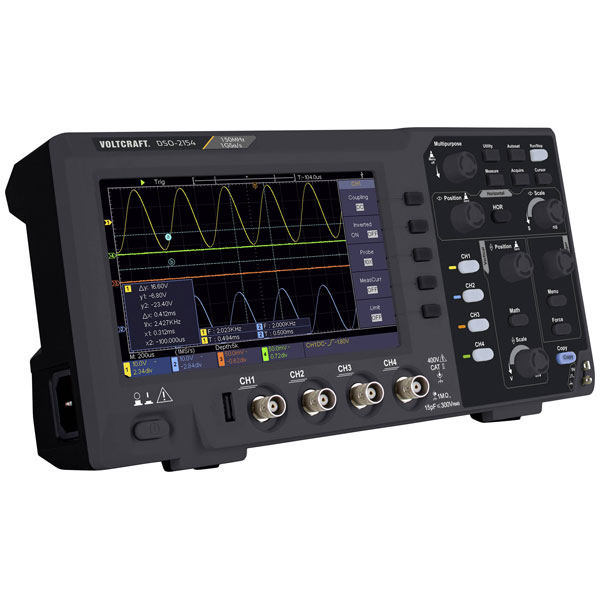

The Voltcraft DSO-2154 is a 4-channel Digital Oscilloscope with 150MHz bandwidth, 1GS/s sample rate, 8 bit resolution and 80kpts memory depth per channel. The digital oscilloscope is designed to provide visual representation of electrical quantities and signals and is capable of storing 16 signal curves that can be displayed on a PC in real time. It features several types of trigger functions and a frequency counting function. The measuring leads are connected to the oscilloscope via BNC sockets. Measured signals can be displayed on the 7 inch (17.8cm) colour LCD touchscreen with 800 x 480 pixel resolution, or on a PC via USB cable. Data storage is also possible via the USB port.
In addition, the VOLTCRAFT DSO-2154 has impressively low energy consumption with less than 15W power consumption.
What's included:
Voltcraft DSO-2154
4 probes
Trimmer tool
USB cable
Mains Power cable
Software-CD
User manual
-
4 Independent Channels
- 17.8cm (7") LCD colour display
- Storage of 16 signal curves
- Real-time signal curve display on PC
- Multiple Trigger types
- Frequency Counting Function
- USB interface for data transfer
- Low power consumption (<15W)
- Calibration: Factory Standard
- Manufacturer's part: DSO-2154
| No. of Channels |
4 |
| Bandwidth |
150MHz |
| Type |
Digital storage oscilloscope |
| Screen Size |
17.8cm |
| Dimensions (L x W x H) |
301 x 152 x 70mm |
| Input Impedance |
1MO |
| Measurement Category |
CAT II 600V |
| Memory Depth/Channel |
80 kpts |
| Operating Temperature |
0 to 40°C |
| Power Supply |
100-240V AC, 50/60Hz |
| Resolution |
8Bit |
| Sample Rate (All Channels) |
1GS/s |
| Weight |
1.1kg |
