Vogt Connection Technology 490814D Twin Ferrule 10mm² Red x100 No Tin Needed

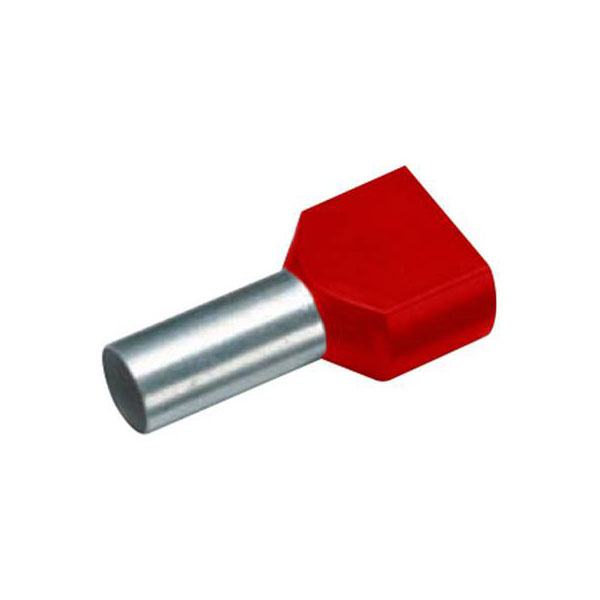

Image Representative of Range

Vogt Connection Technology 490814D Twin Ferrule 10mm² Red x100 No Tin Needed

Vogt Verbindungstechnik
Standard range
Order Code:

13-4175

Brand: Vogt Verbindungstechnik MPN: 490814D EAN-13: 4016138320596
Qty Unit Price (Ex VAT)
1+ £14.75
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
90 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 490814D is a twin ferrule designed for 10 mm² wires and is partially insulated. It features a red colour and comes in a pack of 100 pieces, suitable for crimp connectors and cable-end sleeves. Typically, it is used in electrical applications to secure wire ends and improve connection reliability.
Insulation Polypropylene up to + 105 °C
Type Twin ferrule
AWG max. 7
Contact material Cathode copper, tin plated
Country colour code DIN
Cross section 2 x 10 mm²
Cross section per core 10mm²
Cross-section x Length 10 mm² x 12 mm
Factory colour Red
Insulation material PP
Insulation type Partially insulated
Length 24mm
Material (details) Tinned electrolytic copper
RoHS-compliant Yes
Sleeve length 12mm
Temperature range +105°C
