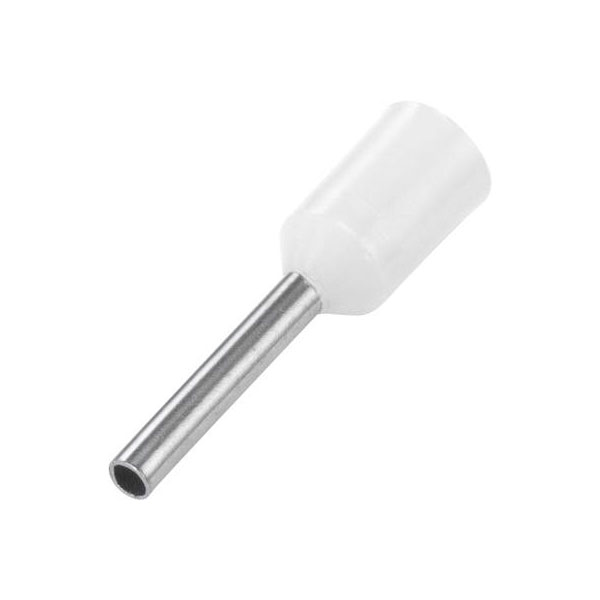

Vogt Connection Technology 470108 Ferrule 0.5mm² Partially Insulated White

The Vogt Verbindungstechnik 470108 ferrule is a partially insulated white connector for wire-end sleeves, sized at 0.5 mm². It is typically used in electrical applications to ensure secure and efficient cable connections. This product is available in a pack of 100 pieces, suitable for various crimping tasks.

Insulation	Partially insulated
Colour	White
Pin Length	14mm
Maximum Wire Size mm2	0.5mm²
Number of Entries	1
Contact Material	Cathode copper, tin plated
Country colour code	DIN
Cross-section range	0.5 mm² x 8 mm
Material	Tinned electrolytic copper
Maximum Wire Size AWG	22
Sleeve length	8mm
Temperature Range	+105°C
Type	Ferrule
