Vogt Connection Technology 3970S Blade Terminal 6.3mm Width Insulated Blue

Image Representative of Range

Vogt Connection Technology 3970S Blade Terminal 6.3mm Width Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4068

Brand: Vogt Verbindungstechnik MPN: 3970S EAN-13: 2050000242168
Qty Unit Price (Ex VAT)
1+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
681 in stock, despatched in 4 working days

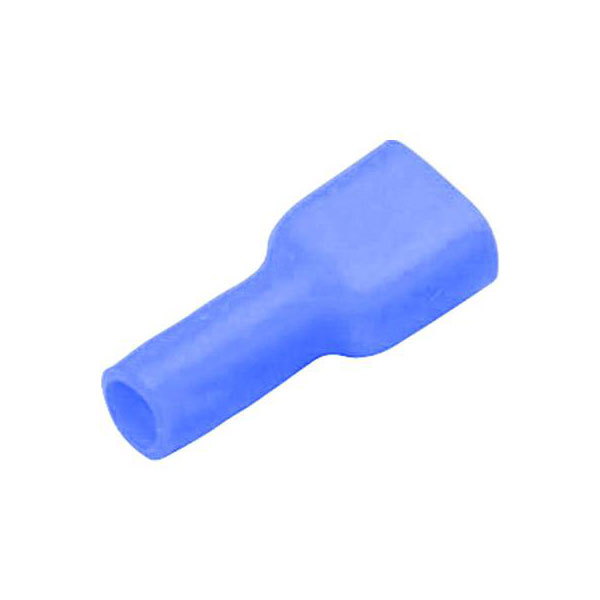

The Vogt Verbindungstechnik 3970S is a blue, insulated blade terminal connector with a width of 6.3 mm and a thickness of 0.8 mm. It is typically used for secure electrical connections in automotive and electronic applications. The connector is designed for reliability in crimped connections.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full PA insulation
Insulation material PA 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 connector
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade terminal
