Vogt Connection Technology 3967S Blade Receptacle 6.3mm 0.8mm Insulated Yellow

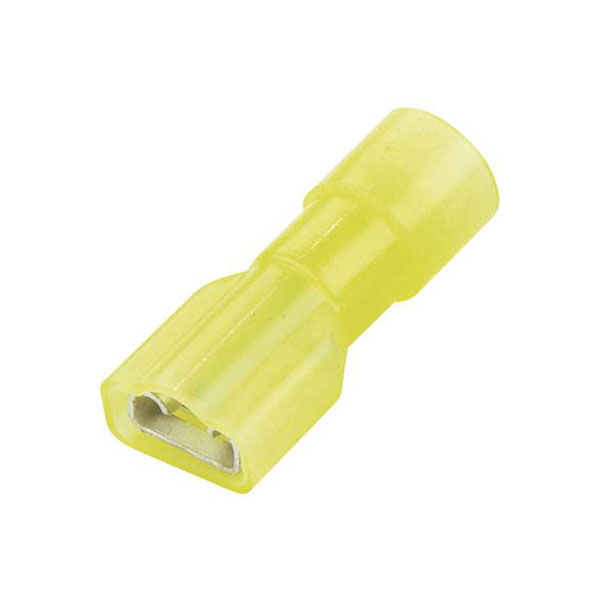

Image Representative of Range

Vogt Connection Technology 3967S Blade Receptacle 6.3mm 0.8mm Insulated Yellow

Vogt Verbindungstechnik
Order Code:

13-4065

Brand: Vogt Verbindungstechnik MPN: 3967S EAN-13: 2050000241772
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 14 days

The Vogt Verbindungstechnik 3967S blade receptacle is an insulated crimp connector with a width of 6.3 mm and thickness of 0.8 mm, designed for secure electrical connections. It features a yellow sleeve for easy identification and is suitable for 180° applications. This connector is commonly used in automotive and industrial wiring for connecting spade terminals safely and efficiently.
Insulation Polyamide 6.6
Colour Yellow
Type Blade receptacle
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact Material Brass tin plated
Cross Section 4 - 6mm²
Cross-section range 4 - 6 mm²
Insulation Type Insulated
max. cross section 6mm²
Min. cross section 4mm²
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve No
