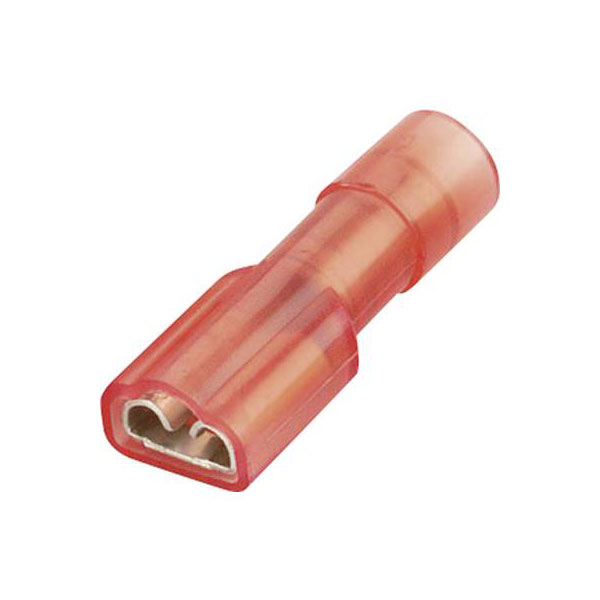

Vogt Connection Technology 396408 Blade Receptacle 4.8x0.8mm Red Insulated

Image Representative of Range

Vogt Connection Technology 396408 Blade Receptacle 4.8x0.8mm Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4056

Brand: Vogt Verbindungstechnik MPN: 396408 EAN-13: 2050000241666
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
5,224 in stock, despatched in 4 working days

The Vogt Verbindungstechnik blade receptacle 396408 is an insulated crimp connector with a width of 4.8 mm and a thickness of 0.8 mm. It is designed for secure electrical connections and is commonly used in automotive and electronic applications. The red insulation indicates its suitability for wire sizes between 0.75-1.5 mm².
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
