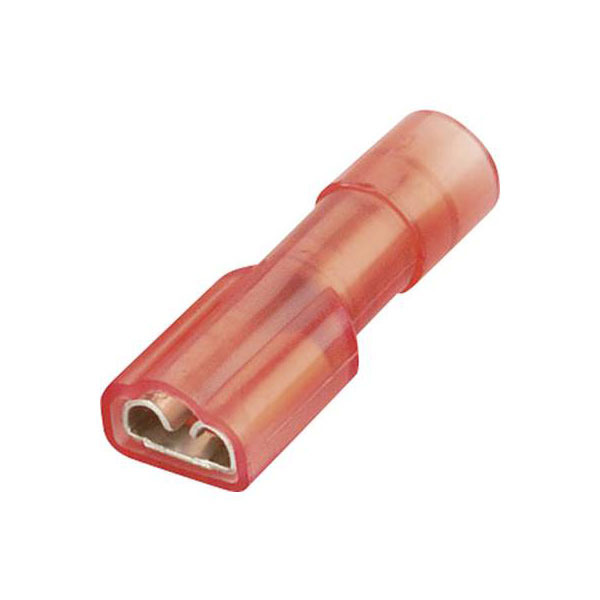

Vogt Connection Technology 396405 Blade Receptacle 4.8mm 0.5mm Insulated Red

Image Representative of Range

Vogt Connection Technology 396405 Blade Receptacle 4.8mm 0.5mm Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4055

Brand: Vogt Verbindungstechnik MPN: 396405 EAN-13: 2050000241659
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
105 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 396405 is a red insulated blade receptacle with a connector width of 4.8 mm and thickness of 0.5 mm. It is used for secure wire connections in electrical applications. Typical uses include connecting wires in household appliances and automotive wiring.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PA insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.5 mm
Support sleeve Yes
Type Blade receptacle
