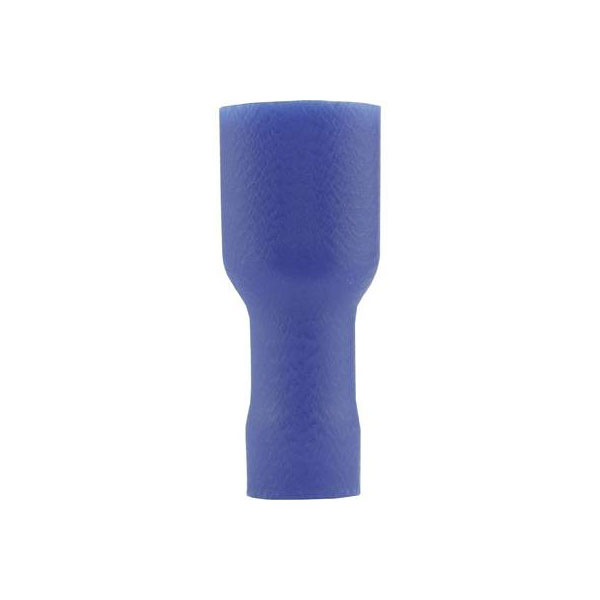

Vogt Connection Technology 396208S Blade Receptacle 4.8mm Blue Insulated 1 piece

Image Representative of Range

Vogt Connection Technology 396208S Blade Receptacle 4.8mm Blue Insulated 1 piece

Vogt Verbindungstechnik
Standard range
Order Code:

13-4050

Brand: Vogt Verbindungstechnik MPN: 396208S EAN-13: 2050000237195
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
8,186 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 396208S is a blade receptacle connector with a width of 4.8 mm and a thickness of 0.8 mm. This insulated blue female spade connector is designed for secure electrical connections. It is typically used in electrical and electronic applications that require reliable wire terminations.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulation PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 3 sleeve
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
