Vogt Connection Technology 396108S Blade Receptacle 4.8mm Red Insulated

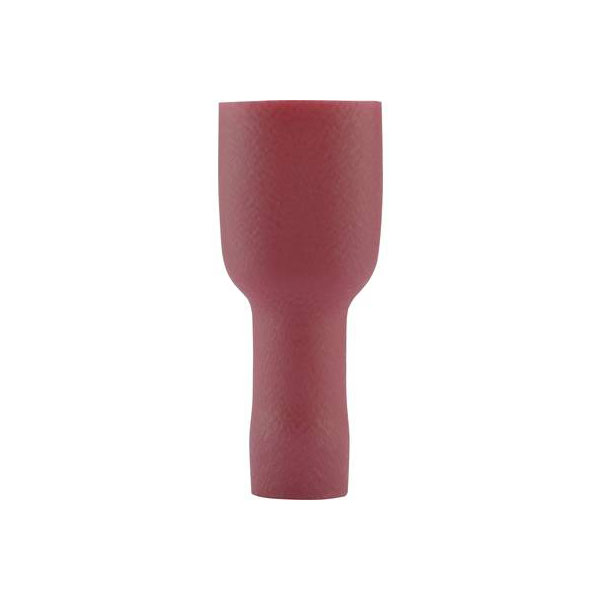

Image Representative of Range

Vogt Connection Technology 396108S Blade Receptacle 4.8mm Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4046

Brand: Vogt Verbindungstechnik MPN: 396108S EAN-13: 2050000237171
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1,707 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 396108S is a red insulated blade receptacle with a connector width of 4.8 mm and thickness of 0.8 mm. It is typically used in electrical applications for secure connections in wiring systems. This crimp connector is ideal for use in automotive and industrial settings.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PA insulated PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 3 sleeve
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
