Vogt Connection Technology 396108 Blade Receptacle 4.8mm Width Red Insulated

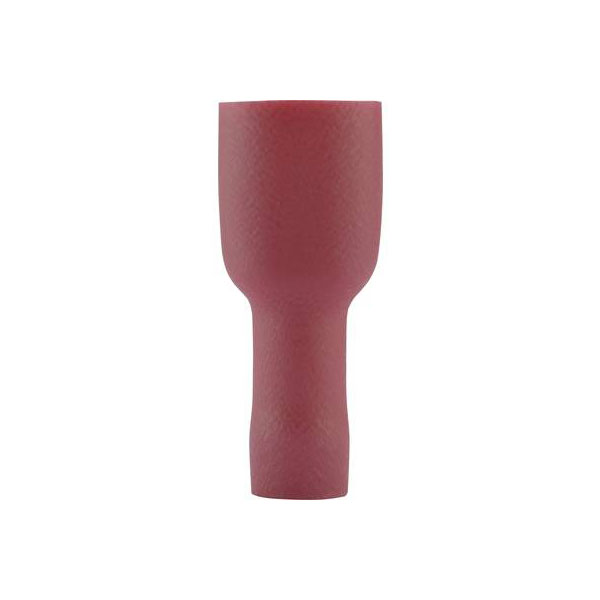

Image Representative of Range

Vogt Connection Technology 396108 Blade Receptacle 4.8mm Width Red Insulated

Vogt Verbindungstechnik
Extended range
Order Code:

13-4045

Brand: Vogt Verbindungstechnik MPN: 396108 EAN-13: 2050000243097
Qty Unit Price (Ex VAT)
25+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 9 days

The Vogt Verbindungstechnik blade receptacle is a 4.8 mm by 0.8 mm, 180° insulated crimp connector available in red. It is designed to provide secure electrical connections in applications such as automotive wiring, household appliances, and industrial equipment. This component ensures reliable connectivity and is suitable for use with various blade terminals.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PA insulation PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
