Vogt Connection Technology 396105S Blade Receptacle 4.8mm Red Insulated

Image Representative of Range

Vogt Connection Technology 396105S Blade Receptacle 4.8mm Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4044

Brand: Vogt Verbindungstechnik MPN: 396105S EAN-13: 2050000243998
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
658 in stock, despatched in 4 working days

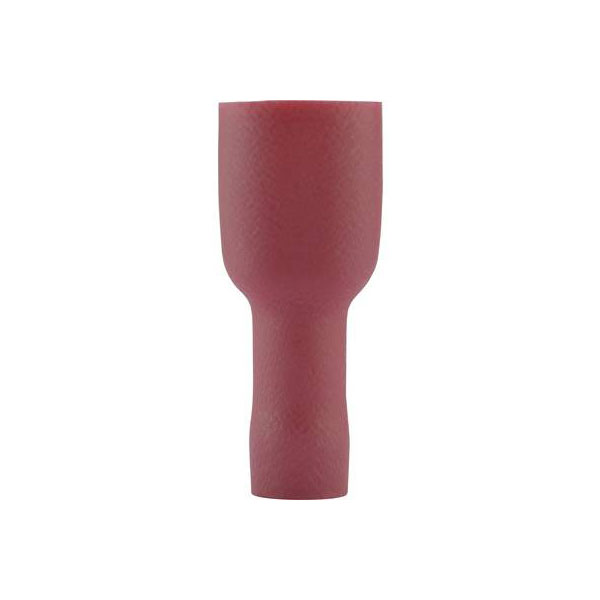

Vogt Verbindungstechnik 396105S is a red, insulated blade receptacle with a connector width of 4.8 mm and thickness of 0.5 mm. This crimp connector is typically used in electrical and electronic applications to securely join wires or cables. Its insulated design helps prevent short circuits and enhances safety during use.
Connection angle 180°
Connector thickness 0.5mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PVC insulation
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.5 mm
Misc Attribute 3 sleeve
Size 4.8 x 0.5 mm
Support sleeve No
Type Blade receptacle
