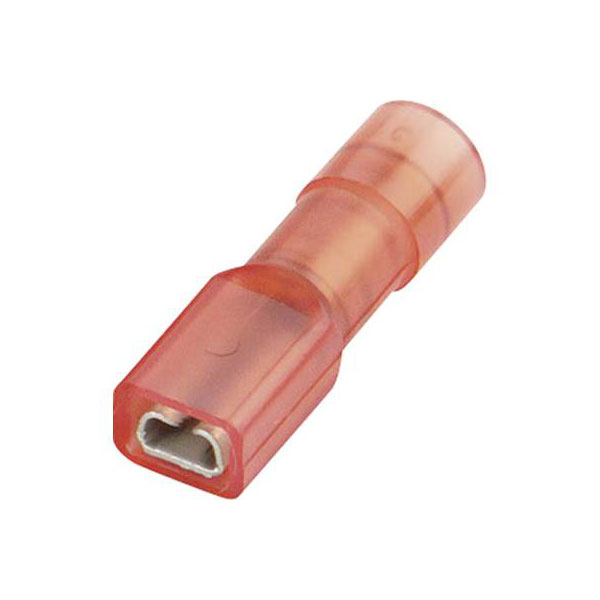

Vogt Connection Technology 396008S Blade Receptacle 2.8mm Width Insulated

Image Representative of Range

Vogt Connection Technology 396008S Blade Receptacle 2.8mm Width Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4042

Brand: Vogt Verbindungstechnik MPN: 396008S EAN-13: 2050000242076
Qty Unit Price (Ex VAT)
25+ £0.198
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4,808 in stock, despatched in 4 working days

Vogt Verbindungstechnik provides a blade receptacle connector with a width of 2.8 mm and a thickness of 0.8 mm, designed with insulation and a 180° orientation. This red, crimp connector is ideal for use in wiring applications where secure and stable connections are required. Its isolated design makes it suitable for electrical and electronic component connections in various industries.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PA insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 3 sleeve
Size 2.8 x 0.8 mm
Support sleeve No
Type Blade receptacle
