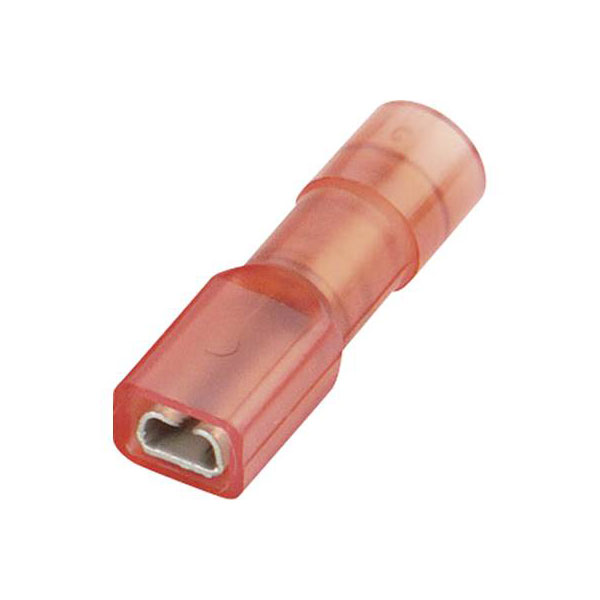

Vogt Connection Technology 396008 Blade Receptacle 2.8x0.8mm Red Insulated

Image Representative of Range

Vogt Connection Technology 396008 Blade Receptacle 2.8x0.8mm Red Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4041

Brand: Vogt Verbindungstechnik MPN: 396008 EAN-13: 2050000241635
Qty Unit Price (Ex VAT)
20+ £0.202
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
7,909 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 396008 is a crimp connector blade receptacle with a connector width of 2.8 mm and thickness of 0.8 mm. It is insulated, red in colour, and designed for 180° connections, ensuring a secure fit for electrical applications. Typical uses include connecting wires in automotive and industrial equipment where reliable electrical connections are essential.
Connection angle 180°
Connector thickness 0.8mm
Connector width 2.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PA insulation PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 2.8 x 0.8 mm
Misc Attribute 2 sleeve
Size 2.8 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
