Vogt Connection Technology 3959 Blade Terminal 6.3mm 180° Insulated Red

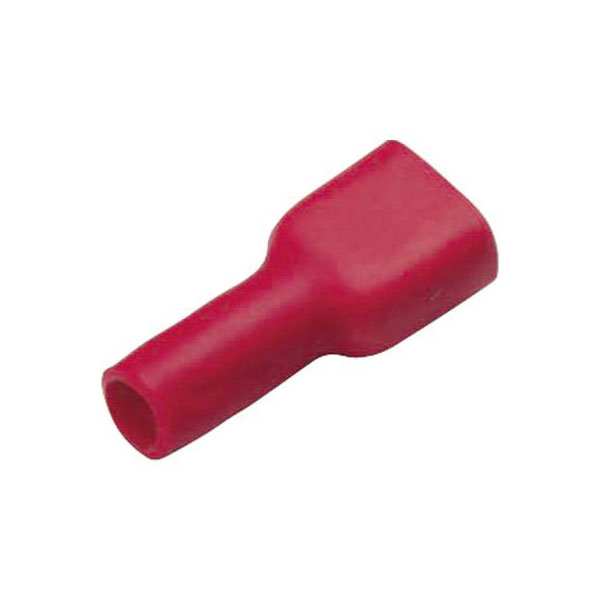

Image Representative of Range

Vogt Connection Technology 3959 Blade Terminal 6.3mm 180° Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4037

Brand: Vogt Verbindungstechnik MPN: 3959 EAN-13: 2050000242434
Qty Unit Price (Ex VAT)
20+ £0.218
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
1,673 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3959 blade terminal is a red insulated crimp connector with a width of 6.3 mm and a thickness of 0.8 mm. This connector is typically used for secure electrical connections in automotive and industrial applications. Its full insulation provides enhanced safety and protection against shorts.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Full PA insulation
Insulation material PA 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8
Misc Attribute 2 connector
RoHS-compliant Yes
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade terminal
