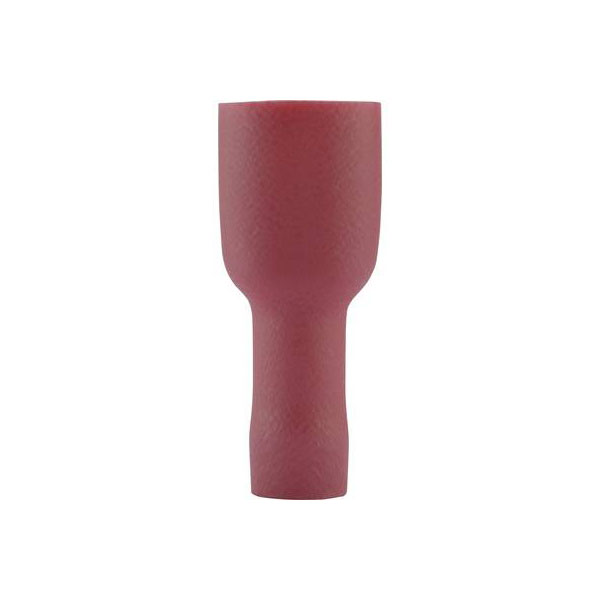

Vogt Connection Technology 3944S Blade Receptacle 6.3mm 180° Insulated Red

Image Representative of Range

Vogt Connection Technology 3944S Blade Receptacle 6.3mm 180° Insulated Red

Vogt Verbindungstechnik
Standard range
Order Code:

13-4032

Brand: Vogt Verbindungstechnik MPN: 3944S EAN-13: 2050000237294
Qty Unit Price (Ex VAT)
50+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
4,924 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3944S is a red, insulated blade receptacle connector with a width of 6.3 mm and thickness of 0.8 mm. It is ideal for creating secure electrical connections in various components and devices. Typical applications include use in automotive and electronic assemblies where reliable crimp connections are required.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation Fully-insulated PVC
Insulation material PVC
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 6.3 x 0.8 mm
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
