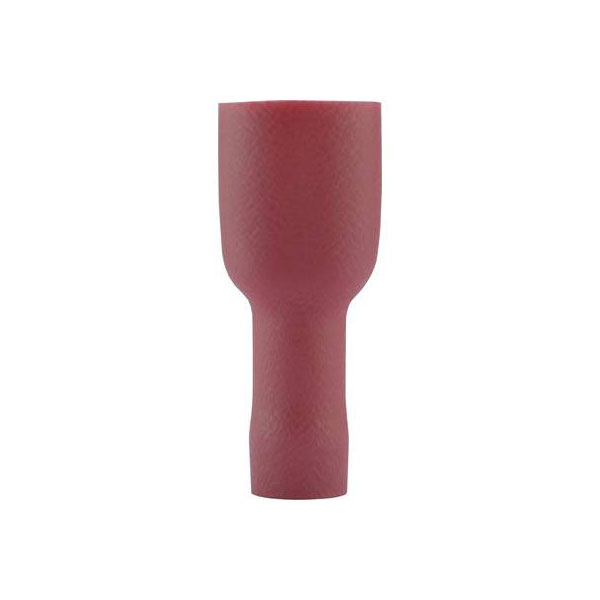

Vogt Connection Technology 3944 Blade Receptacle 6.3mm 0.8mm Insulated Red

Image Representative of Range

Vogt Connection Technology 3944 Blade Receptacle 6.3mm 0.8mm Insulated Red

Vogt Verbindungstechnik
Order Code:

13-4031

Brand: Vogt Verbindungstechnik MPN: 3944 EAN-13: 2050000242946
Qty Unit Price (Ex VAT)
20+ £0.238
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 14 days

Vogt Verbindungstechnik 3944 is a crimp connector with a blade receptacle featuring a 6.3 mm width and 0.8 mm thickness, fully insulated in red. It is typically used in electrical applications where secure connections are needed for wires and components. This connector ensures a reliable connection and protection against accidental short circuits.
Insulation PVC
Colour Red
Type Blade receptacle
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact Material Brass tin plated
Cross Section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Insulation Type Insulated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 2 sleeve
Size 6.3 x 0.8 mm
Support sleeve Yes
