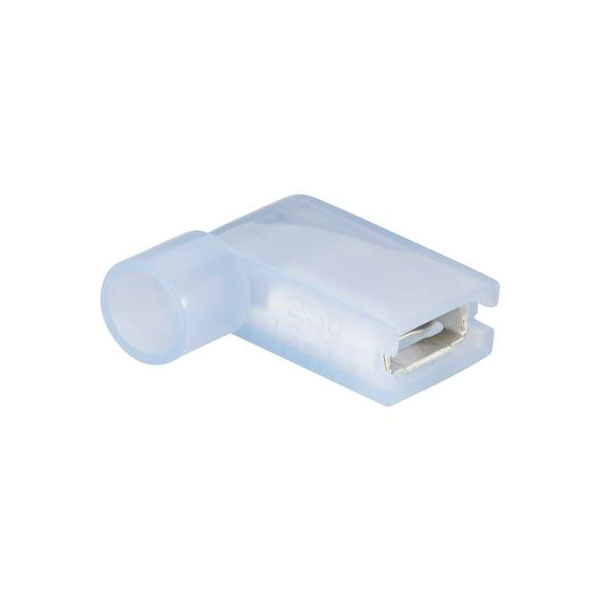

Vogt Connection Technology 3939S Blade Receptacle 6.3mm 90° Insulated Blue

Image Representative of Range

Vogt Connection Technology 3939S Blade Receptacle 6.3mm 90° Insulated Blue

Vogt Verbindungstechnik
Standard range
Order Code:

13-4028

Brand: Vogt Verbindungstechnik MPN: 3939S EAN-13: 2050000241611
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
9,970 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3939S blade receptacle is a blue, insulated crimp connector with a 6.3 mm width and 0.8 mm thickness, angled at 90 degrees. This connector is ideal for secure electrical connections in automotive and industrial applications, providing reliable insulation and easy assembly. It is designed without a support sleeve, offering a compact connection solution for space-constrained environments.
Connection angle 90°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation Full insulated PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 without support sleeve (Form B)
Misc Attribute 2 6.3 x 0.8
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
