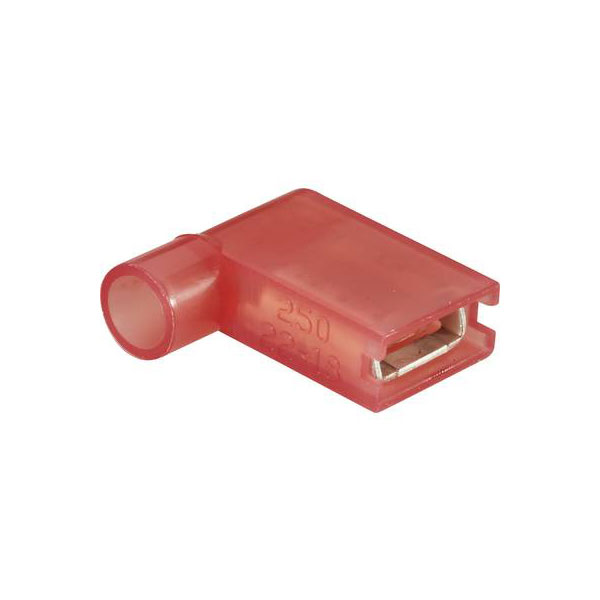

Vogt Connection Technology 3937S Blade Receptacle 6.3mm Red 90° Insulated

Image Representative of Range

Vogt Connection Technology 3937S Blade Receptacle 6.3mm Red 90° Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4021

Brand: Vogt Verbindungstechnik MPN: 3937S EAN-13: 2050000241598
Qty Unit Price (Ex VAT)
50+ £0.159
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
8,622 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 3937S is a red insulated blade receptacle connector with a width of 6.3 mm and thickness of 0.8 mm, designed with a 90° angle. It features a robust crimp connection, making it suitable for secure electrical terminations in automotive and electronic applications. Ideal for situations where reliable female spade connections are needed without a support sleeve.
Connection angle 90°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 0.75 - 1.5mm²
Cross-section range 0.705 - 1.50 mm²
Factory colour Red
Insulation Full insulated PA
Insulation material Polyamide 6.6
Insulation type Insulated
Material (details) Brass, tin-plated
max. cross section 1.50mm²
Min. cross section 0.705mm²
Misc Attribute 1 without support sleeve (Form B)
Misc Attribute 2 6.3 x 0.8
Size 6.3 x 0.8 mm
Support sleeve No
Type Blade receptacle
