Vogt Connection Technology 393408 Blade Terminal 4.8mm 180° Partially Insul

Image Representative of Range

Vogt Connection Technology 393408 Blade Terminal 4.8mm 180° Partially Insul

Vogt Verbindungstechnik
Standard range
Order Code:

13-4015

Brand: Vogt Verbindungstechnik MPN: 393408 EAN-13: 2050000242052
Qty Unit Price (Ex VAT)
50+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
180 in stock, despatched in 4 working days

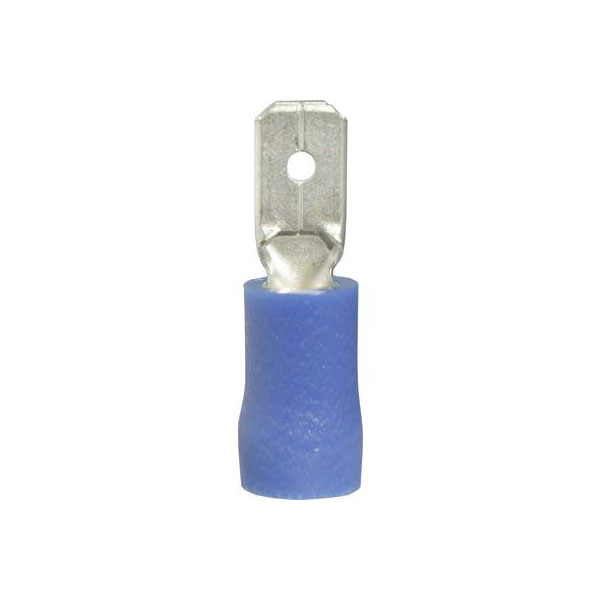

Vogt Verbindungstechnik manufactures the 393408 blade terminal, which has a connector width of 4.8 mm and a thickness of 0.8 mm. This partially insulated, blue crimp connector is ideal for use in electrical applications requiring secure and reliable connections. It is commonly used in automotive and industrial wiring systems.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 1.5 - 2.5mm²
Cross-section range 1.50 - 2.50 mm²
Factory colour Blue
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 2.50mm²
Min. cross section 1.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 connector
RoHS-compliant Yes
Size 4.8 x 0.8 mm
Support sleeve Yes
Type Blade terminal
