Vogt Connection Technology 3933 Blade Receptacle 6.3mm Width 0.8mm Thickness

Image Representative of Range

Vogt Connection Technology 3933 Blade Receptacle 6.3mm Width 0.8mm Thickness

Vogt Verbindungstechnik
Standard range
Order Code:

13-4012

Brand: Vogt Verbindungstechnik MPN: 3933 EAN-13: 2050000241871
Qty Unit Price (Ex VAT)
20+ £0.336
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
492 in stock, despatched in 4 working days

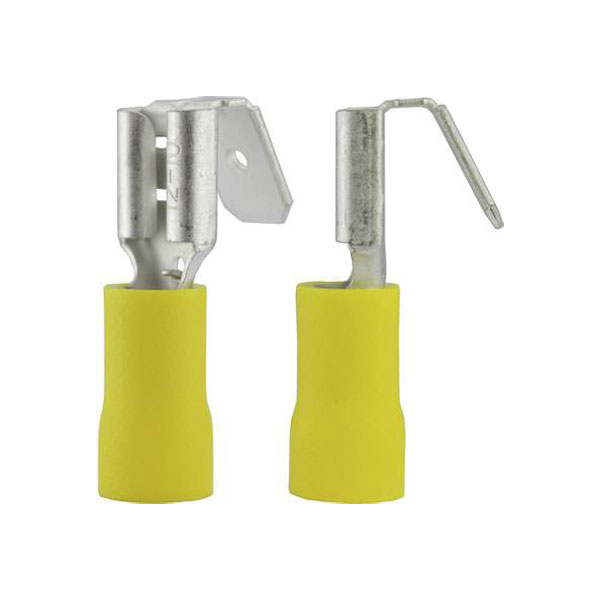

Vogt Verbindungstechnik's 3933 blade receptacle and branch joint is a partially insulated, yellow crimp connector with a width of 6.3 mm and thickness of 0.8 mm. This component is ideal for secure electrical connections, particularly in automotive and industrial applications. Its design conforms to form A DIN 46245 standards and is UL certified.
Connection angle 180°
Connector thickness 0.8mm
Connector width 6.3mm
Contact material Brass tin plated
Cross section 4 - 6mm²
Cross-section range 4 - 6 mm²
Factory colour Yellow
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 6mm²
Min. cross section 4mm²
Misc Attribute 1 (Shape A DIN 46245 UL-No. E235796))
Misc Attribute 2 6.3 x 0.8
Size 6.3 x 0.8 mm
Support sleeve Yes
Type Blade receptacle
