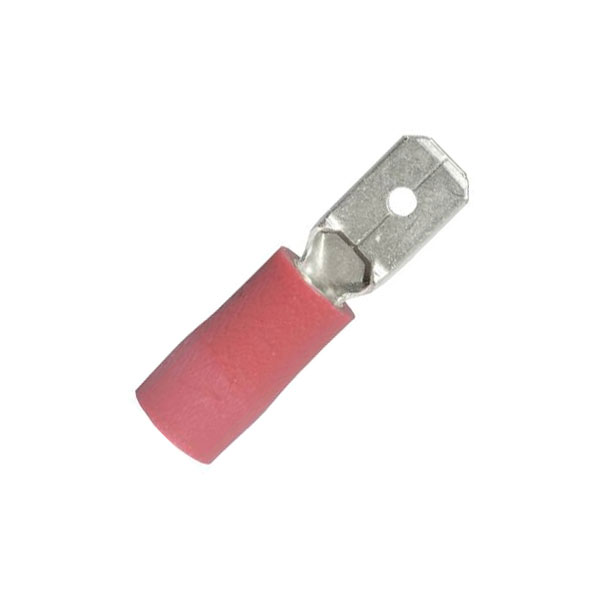

Vogt Connection Technology 392808S Blade Terminal 4.8mm Red 180° Insulated

Image Representative of Range

Vogt Connection Technology 392808S Blade Terminal 4.8mm Red 180° Insulated

Vogt Verbindungstechnik
Standard range
Order Code:

13-4006

Brand: Vogt Verbindungstechnik MPN: 392808S EAN-13: 2050000237348
Qty Unit Price (Ex VAT)
1+ £0.099
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
841 in stock, despatched in 4 working days

The Vogt Verbindungstechnik 392808S blade terminal is a crimp connector with a width of 4.8 mm and a thickness of 0.8 mm, featuring partial insulation and a red colour. It is ideal for electrical applications requiring reliable spade connections. Commonly used in automotive and machinery wiring tasks, it ensures secure and efficient electrical connections.
Connection angle 180°
Connector thickness 0.8mm
Connector width 4.8mm
Contact material Brass tin plated
Cross section 0.5 - 1.0mm²
Cross-section range 0.50 - 1 mm²
Factory colour Red
Insulation PVC part-insulation
Insulation material PVC
Insulation type Partially insulated
Material (details) Brass, tin-plated
max. cross section 1mm²
Min. cross section 0.50mm²
Misc Attribute 1 4.8 x 0.8 mm
Misc Attribute 2 connector
RoHS-compliant Yes
Size 4.8 x 0.8 mm
Support sleeve No
Type Blade terminal
